Diver NPT Male Thread Reprehendo Valvae

Diver NPT Male Thread Reprehendo Valvae

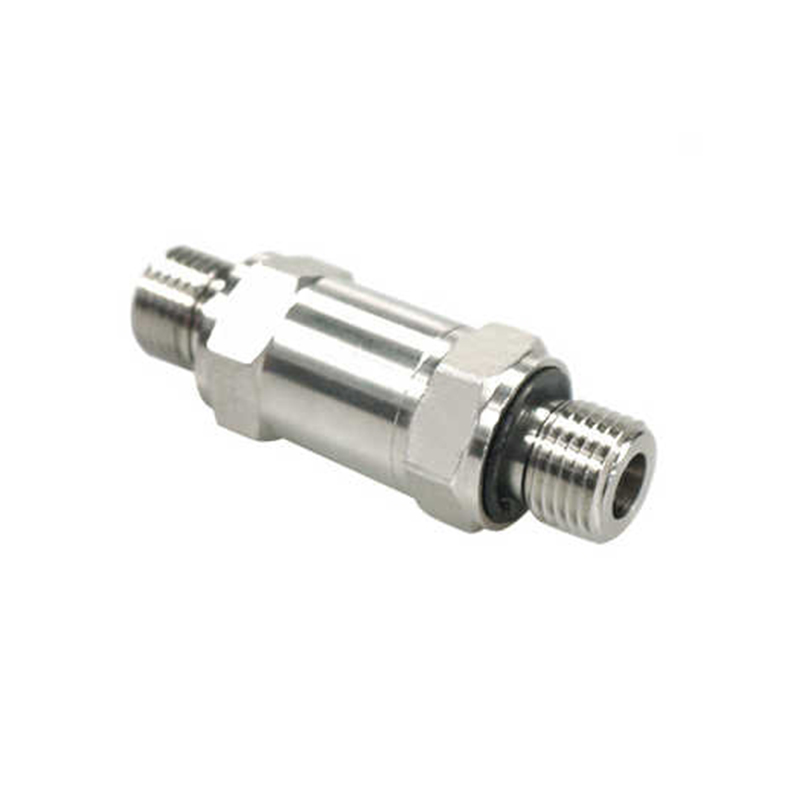

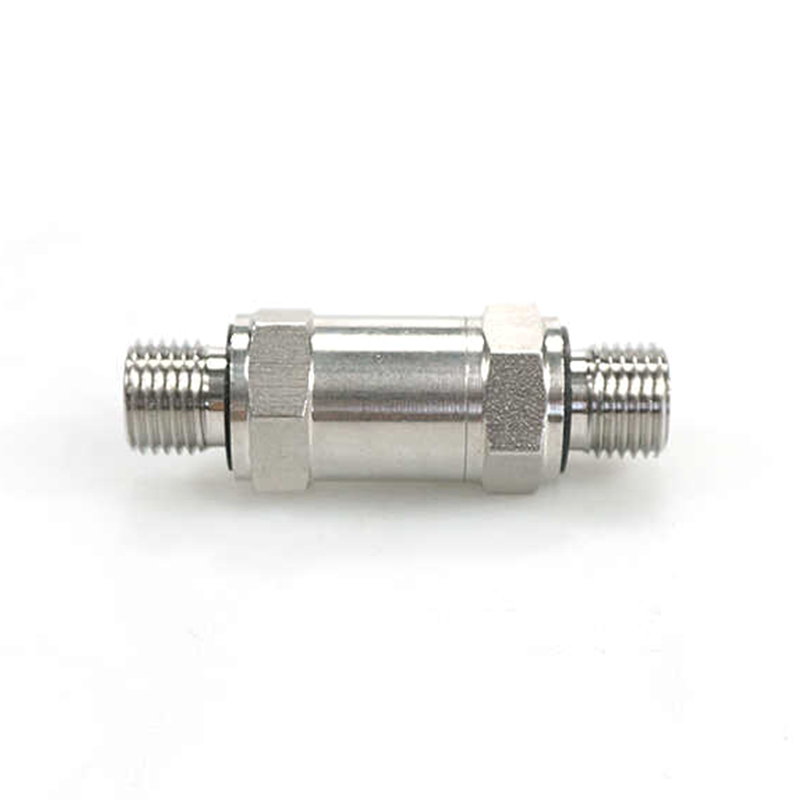

Immaculata Steel NPT Male Thread Perscriptio Valvae fabrica est in systematibus fluidis late adhibitis. Imprimis adhibetur ad influxum fluidum prohibendum et in una tantum parte fluit ut liquor vel gas fluit. Comprehendit NPT vexillum masculinum filum interfaciei designandi et arcte coniungi cum variis systematibus pipelinis ut caveat ne ultrices nulla sint. Effectus obsignatio articulorum NPT linamentorum excellens est, praesertim apta ad systematis gasi ac pressurae fluidi summus. Cum insertis, mox obstringere stabili nexum curare. Operatio institutionis simplex et velox est, variis applicationibus industriae apta. Haec valvae efficaciter impedire possunt fluidi regressum in pipeline et umbilicos, valvulas et alia instrumenta in systemate ab impulsu fluidi contrariorum tuentur. Munus hoc impedit regressum materiae in pipeline et umorem contaminationem vitat.^

Nobis Contingere
  • Describere
  • Parametrum
Describere
Praecipua Ordinatio
Numerus 		Connexio typus et Size CV Dimensio, in.  (mm)
Inlet Outlet A H
-CH-FN4 1/4 Femina NPT 1/4 Femina NPT 0.7 2.13(54.1) 11/16  (27.0)
-CH-FN6 3/8 Male NPT 3/8 Male NPT 1.8 2.55(64.8) 1(25.4)
-CH-FN8 1/2 Femina NPT 1/2 Femina NPT 1.8 3.03(77.0) 11/16  (27.0)
-CH-FN12 3/4 Femina NPT 3/4 Femina NPT 4.7 3.23 (82.0) 15/8(41.3)
-CH-FN16 1 Male NPT 1 Male NPT 4.7 3.83(97.3) 15/8(41.3)
-CH-MN4 1/4 Male NPT 1/4 Male NPT 0.7 2.17(55.1) 11/16  (27.0)
-CH-MN6 3/8 Male NPT 3/8 Male NPT 1.8 2.36(60.0) 1(25.4)
-CH-MN8 1/2 Male NPT 1/2 Male NPT 1.8 2.73(69.3) 1  (25.4)
-CH-MN12 3/4 Male NPT 3/4 Male NPT 4.7 3.29 (83.6) 15/8(41.3)
-CH-MN16 1 Male NPT 1 Male NPT 4.7 3.67(93.2) 15/8  (41.3)
-CH-FT2 1/8"Tube 1/8"Tube 0.7 2.27(57.7) 11/16  (27.0)
-CH-FT4 1/4"Tube 1/4"Tube 0.7 2.43(61.7) 11/16  (27.0)
-CH-FT6 3/8"Tube 3/8"Tube 1.8 2.75(70.0) 1(25.4)
-CH-FT8 1/2"Tube 1/2"Tube 1.8 2.96(75.2) 1(25.4)
-CH-FT12 3/4"Tube 3/4"Tube 4.7 3.53 (89.4) 15/8(41.3)
-CH-FT16 1"Tube 1"Tube 4.7 3.88 (98.6) 15/8  (41.3)
-CH-MT6 6mm Tube 6mm Tube 0.7 2.43(61.7) 11/16  (27.0)
-CH-MT10 10mm Tube 10mm Tube 1.8 2.80(71.0) 1  (25.4)
-CH-MT12 12mm Tube 12mm Tube 1.8 2.96(75.2) 1(25.4)
-CH-MT22 22mm Tube 22mm Tube 4.7 3.53 (89.4) 15/8(41.3)
-CH-MT25 25mm Tube 25mm Tube 4.7 3.88 (98.6) 15/8(41.3)
