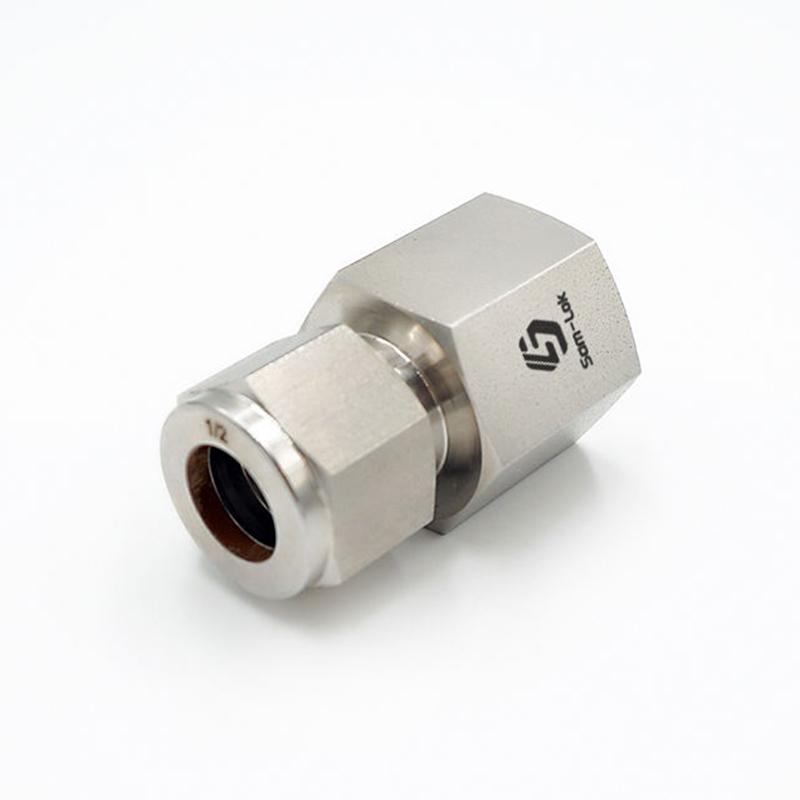

Stainless Steel Double Ferrules Female Fittings

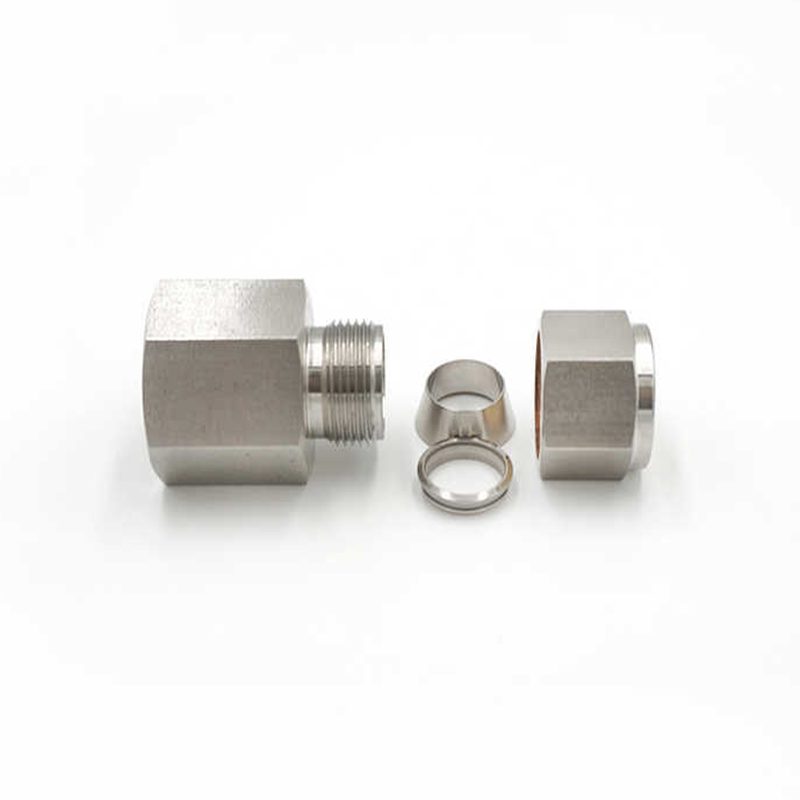

Steel Duplex Ferrules Female Opportunus Dives est summus effectus, praecisio-enlineata componentis ad securos, liberorum nexus in hydraulica, pneumatica et industriae limbis systematibus destinata. Duplex ferrule connexionis genere utitur. Hoc consilium duas ferrules (ferrules externas et ferrules interiores) involvit quae sigillum liberum a nuce compressum strictum formant. Fibulae ferrules ex utraque parte fistulam habent, ut nexus etiam sub pressione et temperatura ambigua securum maneat. Intus ferrule primum sigillum praebet et fistulam nucis ad lacus ne constringit; Exterior ferrule sigillum secundarium format, et nexum amplius corroborat, altiore robore congruentem augens; filo feminae consilium huius iungonis facile in systemata coniungi potest quae sequelam femineam requirunt, flexibilitatem praebens variis organis magnitudinum ac filorum. Fila feminina permittunt ad conventum efficientem et disconsionem sine integritate sigilli detrimento.

Contactus Us

PREV: Masculum Steel Male Cubitus Compressionis Fistulae Fittings DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Falsa Brand:SAM-LOK Connection: duplex ferrule et femina stamina

Figura: Aequale Postula Type:Unf,NPT,BSPT Codex Capitis: Hexagon

OD Size: 1/16''-1'',3mm-25mm

Structura: unio, cubitus, tee, crux, mole, mas vel femina iungo

Operationis Impetus: 3000- 6000psi

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Curatio tubus: plene annealed

Interiorem Cone: Speculum tincidunt processus

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	P-NPT' Magnitudo	Praecipua Ordinatio Numerus	Dimensio in(mm)
T-Tube O.D. (in.)	P-NPT' Magnitudo	Praecipua Ordinatio Numerus	L	B	C	E	D	F
1/16	1/16	-FC-FT1-FN1	0.93(23.6)	0.39(9.9)	0.34(8.6)	0.05(1.3)	0.31(7.9)	0.44(11.1)
1/16	1/8	FC-FT1-FN2	0.96(24.4)	0.41(10.4)	0.34(8.6)	0.05(1.3)	0.31(7.9)	0.56(14.3)
1/8	1/8	FC-F12-FN2	1.13(28.7)	0.41(10.4)	0.50(12.7)	0.09(2.3)	0.44(11.1)	0.56(14.3)
1/8	1/4	-FC-F12-FN4	1.32(33.5)	0.59 (15.0)	0.50(12.7)	0.09(2.3)	0.44(11.1)	0.75(19.1)
3/16	1/8	-FC-F13-FN2	1.17(29.7)	0.41(10.4)	0.54(13.7)	0.12(3.0)	0.50(12.7)	0.56(14.3)
1/4	1/8	FC-FT4-FN2	1.23(31.2)	0.41(10.4)	0.60(15.2)	0.19(4.8)	0.56(14.3)	0.56(14.3)
1/4	1/4	-FC-FT4-FN4	1.41(35.8)	0.59 (15.0)	060(15.2)	0.19(4.8)	0.56(14.3)	0.75(19.1)
1/4	3/8	-FC-FT4-FN6	1.48(37.6)	0.59 (15.0)	0.60(15.2)	0.19(4.8)	0.56(14.3)	0.87(22.2)
5/16	1/8	FC-FT5-FN2	1.26(32.0)	0.41(10.4)	0.64(16.3)	16.3(6.4)	0.63(15.9)	0.56(14.3)
5/16	1/4	-FC-FT5-FN4	1.45(36.8)	0.59 (15.0)	0.64(16.3)	0.25(6.4)	0.63(15.9)	0.75(19.1)
3/8	1/8	-FC-F16-FN2	1.29(32.8)	0.41(10.4)	0.66(16.8)	0.28(7.1)	0.69(17.5)	0.63(15.9)
3/8	1/4	-FC-FT6-FN4	1.48(37.6)	0.59 (15.0)	0.66(16.8)	0.28(7.1)	0.69(17.5)	0.75(19.1)
3/8	3/8	FC-F16-FN6	1.54(39.1)	0.59 (15.0)	0.66(16.8)	0.28(7.1)	0.69(17.5)	0.87(22.0)
3/8	1/2	FC-FT6-FN8	1.73(43.9)	0.78(19.8)	0.66(16.8)	0.28(7.1)	0.69(17.5)	1.06(27.0)
1/2	1/4	-FC-FT8-FN4	1.59(40.4)	0.59 (15.0)	0.90(22.9)	0.41(10.4)	0.87(22.2)	0.81(20.6)
1/2	3/8	-FC-F18-FN6	1.65(41.9)	0.59 (15.0)	0.90(22.9)	0.41(10.4)	0.87(22.2)	0.87(22.2)
1/2	1/2	FC-FT8-FN8	1.84(46.7)	0.78(19.8)	0.90(22.9)	0.41(10.4)	0.87(22.2)	1.06(27.0)
1/2	3/4	-FC-FT8-FN12	1.90(48.3)	0.81(20.6)	0.90(22.9)	0.41(10.4)	0.87(22.2)	1.31(33.3)
5/8	1/2	-FC-FT10-FN8	1.84(46.7)	0.78(19.8)	0.96(24.4)	0.50(12.7)	1.00(25.4)	1.06(27.0)
3/4	1/2	-FC-FT12-FN8	1.84(46.7)	0.78(19.8)	0.96(24.4)	0.62(15.7)	1.13(28.6)	1.06(27.0)
3/4	3/4	-FC-FT12-FN12	1.90(48.3)	0.81(20.6)	0.96(24.4)	0.62(15.7)	1.13(28.6)	1.31(33.3)
7/8	3/4	-FC-FT14-FN12	1.96(49.8)	0.81(20.6)	1.02(25.9)	0.72 (18.3)	1.25(31.8)	1.31(33.3)
1	3/4	-FC-FT16-FN12	2.10(53.3)	0.81(20.6)	1.23(31.2)	0.88(22.4)	1.50(38.1)	1.37(34.9)
1	1	-FC-FT16-FN16	2.45(62.2)	1.00(25.4)	1.23(31.2)	0.88(22.4)	1.50(38.1)	1.63(41.3)
11/4	11/4	-FC-FT20-FN20	2.94(74.7)	1.00(25.4)	1.62(41.1)	1.09(27.7)	1.87(47.6)	2.13(54.0)
11/2	11/2	-FC-FT24-FN24	3.30(83.8)	1.09(27.7)	1.97(50.0)	1.43(36.3)	2.25(57.2)	2.37(60.3)

T-Tube O.D. (mm)	P-N PT Magnitudo	Basic Ordering Numerus	Dimensio, mm.
T-Tube O.D. (mm)	P-N PT Magnitudo	Basic Ordering Numerus	L	B	C	E	D	F
3	1/8	-FC-MT3-FN2	28.7(1.13)	10.4(0.41)	12.9(0.51)	2.4(0.09)	12.0(0.47)	14.0(0.55)
3	1/4	FC-MT3-FN4	33.5 (1.32)	15.0(0.59)	12.9(0.51)	2.4(0.09)	12.0(0.47)	19.0(0.75)
4	1/8	-FC-MT4-FN2	29.7 (1.17)	10.4(0.41)	13.7(0.54)	2.4(0.09)	12.0(0.47)	14.0(0.55)
6	1/8	-FC-MT6-FN2	31.3(1.23)	10.4(0.41)	15.3(0.60)	4.8(0.19)	14.0(0.55)	14.0(0.55)
6	1/4	-FC-MT6-FN4	35.8 (1.41)	15.0(0.59)	15.3(0.60)	4.8(0.19)	14.0(0.55)	19.0(0.75)
6	3/8	-FC-MT6-FN6	37.7 (1.48)	15.0(0.59)	15.3(0.60)	4.8(0.19)	14.0(0.55)	22.0(0.87)
6	1/2	-FC-MT6-FN8	42.5 (1.67)	19.8(0.78)	15.3(0.60)	4.8(0.19)	14.0(0.55)	27.0 (1.06)
8	1/8	-FC-MT8-FN2	32.1 (1.26)	10.4(0.41)	16.2(0.64)	4.8(0.19)	16.0(0.63)	15.0(0.59)
8	1/4	-FC-MT8-FN4	37.0 (1.46)	15.0(0.59)	16.2(0.64)	6.4(0.25)	16.0(0.63)	19.0(0.75)
8	3/8	-FC-MT8-FN6	38.5 (1.52)	15.0(0.59)	16.2(0.64)	6.4(0.25)	16.0(0.63)	22.0(0.87)
8	1/2	-FC-MT8-FN8	43.3 (1.70)	19.8(0.78)	16.2(0.64)	6.4(0.25)	16.0(0.63)	27.0 (1.06)
10	1/8	-FC-MT10-FN2	33.0 (1.30)	10.4(0.41)	17.2(0.68)	4.8(0.19)	19.0(0.75)	15.0(0.59)
10	1/4	-FC-MT10-FN4	37.8 (1.49)	15.0(0.59)	17.2(0.68)	7.9(0.31)	19.0(0.75)	19.0(0.75)
10	3/8	-FC-MT10-FN6	39.4 (1.55)	15.0(0.59)	17.2(0.68)	7.9(0.31)	19.0(0.75)	22.0(0.87)
10	1/2	-FC-MT10-FN8	44.2 (1.74)	19.8(0.78)	17.2(0.68)	7.9(0.31)	19.0(0.75)	27.0 (1.06)
12	1/4	-FC-MT12-FN4	40.3 (1.59)	15.0(0.59)	22.8(0.90)	7.9(0.31)	22.0(087)	22.0(0.87)
12	3/8	-FC-MT12-FN6	41.9 (1.65)	15.0(0.59)	22.8(0.90)	9.5(0.37)	22.0(087)	22.0(0.87)
12	1/2	-FC-MT12-FN8	46.7 (1.84)	19.8(0.78)	22.8(0.90)	9.5(0.37)	22.0(087)	27.0 (1.06)
12	3/4	-FC-MT12-FN12	49.7 (1.96)	20.6(0.81)	22.8(0.90)	9.5(0.37)	22.0(087)	35.0 (1.38)
14	3/4	-FC-MT14-FN12	49.7 (1.96)	20.6(0.81)	24.4(0.96)	11.1(0.44)	25.0(0.98)	35.0 (1.38)
15	1/2	-FC-MT15-FN8	46.7 (1.84)	19.8(0.78)	24.4(0.96)	11.9(0.47)	25.0(0.98)	27.0 (1.06)
16	3/8	-FC-MT16-FN6	41.9 (1.65)	15.0(0.59)	24.4(0.96)	9.5(0.37)	25.0(0.98)	27.0 (1.06)
16	1/2	-FC-MT16-FN8	46.9 (1.85)	19.8(0.78)	24.4(0.96)	11.9(0.47)	25.0(0.98)	27.0 (1.06)
20	1/2	-FC-MT20-FN8	47.9 (1.89)	19.8(0.78)	26.0 (1.02)	11.9(0.47)	32.0 (1.26)	30.0(1.18)
20	3/4	-FC-MT20-FN12	49.7 (1.96)	20.6(0.81)	26.0(102)	15.9(0.63)	32.0 (1.26)	35.0 (1.38)
22	3/4	-FC-MT22-FN12	49.7 (1.96)	20.6(0.81)	26.0 (1.02)	15.9(0.63)	32.0 (1.26)	35.0 (1.38)
22	1	-FC-MT22-FN16	57.9 (2.28)	25.4 (1.00)	26.0 (1.02)	18.3(0.72)	32.0 (1.26)	41.0 (1.61)
25	3/4	-FC-MT25-FN12	53.4 (2.10)	20.6(081)	31.3(1.23)	15.9(0.63)	38.0 (1.50)	35.0 (1.38)
25	1	-FC-MT25-FN16	62.3 (2.45)	25.4 (1.00)	31.3(1.23)	218(0.86)	38.0 (1.50)	41.0 (1.61)
