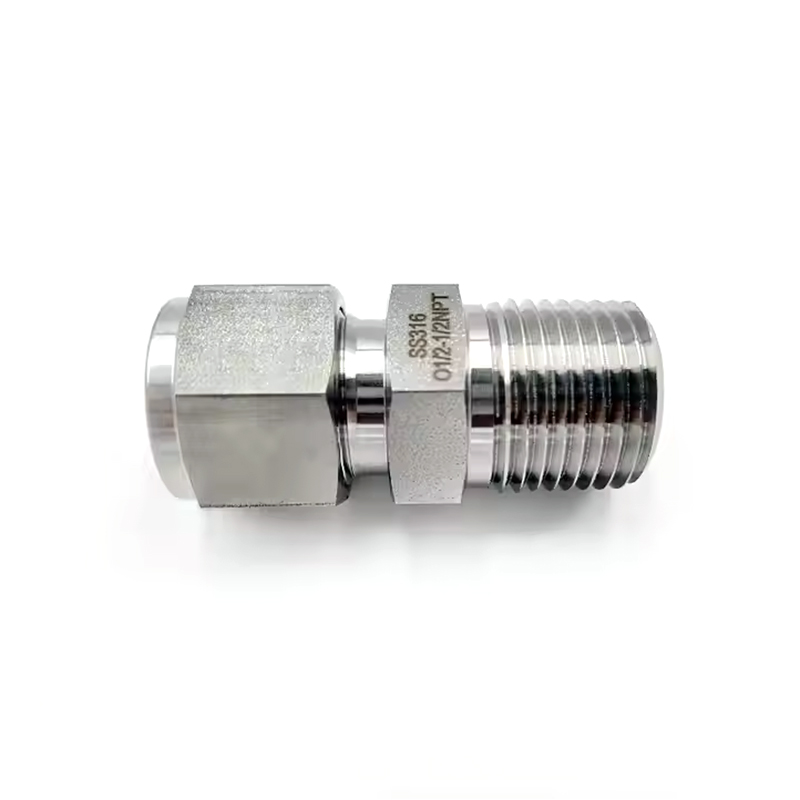

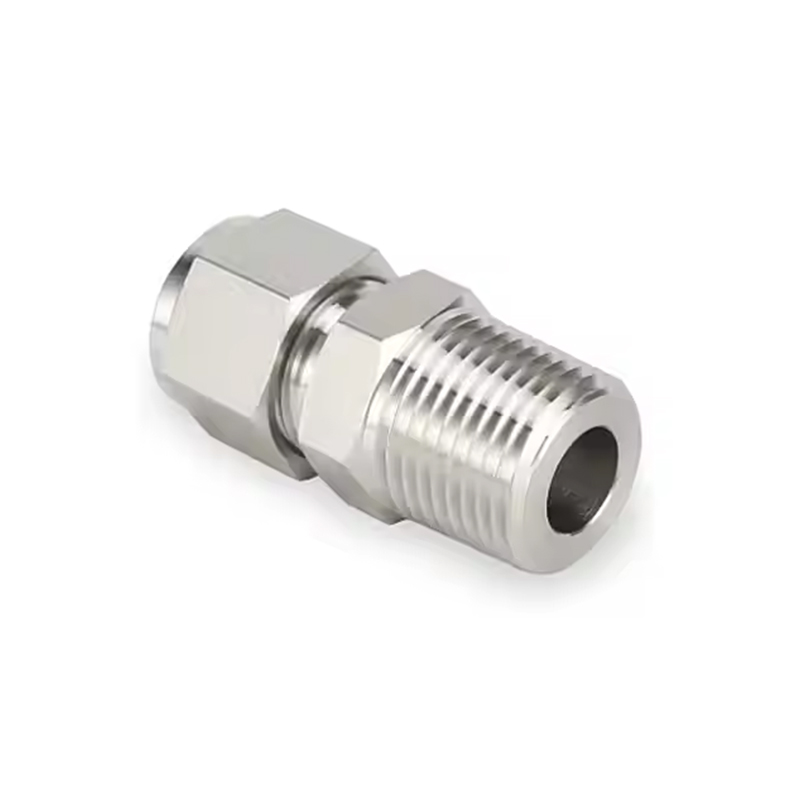

Steel Double Ferrules Male Fittings

Steel Duplex Ferrules Male Aptus utitur processu cudendo, qui metallum format copias compressivas applicando, eo quod auget structuram internam et altiore proprietatibus mechanicis. Secus abiectio, structuram frumenti metalli adsimilat fabricans, fortius et durabilius creando caerimonias. Apto consilio utitur conformi, qui intus et extra diametros conservat congruenter ad invigilandum tramitem convenientem. Haec figura turbationem et pressionem minimizet guttam, providendo levem, continuam ab uno componente in aliud fluxum. Consilium conforme convenit applicationibus quae rate fluxum uniformem servant, ut in tractationibus fluidis, hydraulicis et chemicis processui. Curatio duritia eius ferrule est processus qui auget resistentiam ferrule indumentis. Ferrule est id quod fibulat tibiam ad sigillum securum formans. Haec curatio efficit ut ferrule suam formam obtineat ac facultatem obsignandi etiam sub alta pressione et alta vibratione condiciones, ita ut servitutem vitae convenientis extendat..

Contactus Us

PREV: Steel Duplex Ferrule Male germen Tee DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Falsa Brand:SAM-LOK Connexio: duplex ferrule et masculina

Figura: Aequale Postula Type:Unf,NPT,BSPT Codex Capitis: Hexagon

OD Size: 1/16''-1'',3mm-25mm

Structura: unio, cubitus, tee, crux, mole, mas vel femina iungo

Operationis Impetus: 3000- 6000psi

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Curatio tubus: plene annealed

Interiorem Cone: Speculum tincidunt processus

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	P-NPT Magnitudo	Praecipua Ordinatio Numerus	Dimensio, m.
T-Tube O.D. (in.)	P-NPT Magnitudo	Praecipua Ordinatio Numerus	L	B	C	E	D	F
1/16	1/16	-MC-FT1-MN1	0.94(23.9)	0.38(9.7)	034(8.6)	005(1.3)	0.31(7.9)	0.31(7.9)
1/16	1/8	-MC-FT1-MN2	1.03(26.2)	0.38(9.7)	0.34(8.6)	0.05(1.3)	031(7.9)	0.44(11.1)
1/8	1/16	-MC-FT2-MN1	1.17(29.7)	0.38(9.7)	0.50(12.7)	0.09(2.3)	0.44(11.1)	044 (11.1)
1/8	1/8	-MC-FT2-MN2	1.2030.5)	0.38(9.7)	0.50(12.7)	0.09(2.3)	0.44(11.1)	044 (11.1)
1/8	1/4	-MC-FT2-MN4	1.40(35.6)	0.56(14.2)	0.50(12.7)	0.09(2.3)	0.44(11.1)	0.56(14.3)
3/16	1/8	-MC-FT3-MN2	1.2331.2)	0.38(9.7)	0.54(13.7)	0.12(3.0)	0.50(12.7)	0.44(11.1)
3/16	1/4	-MC-FT3-MN4	1.43(36.3)	0.56(14.2)	0.54(13.7)	0.12(3.0)	0.50(12.7)	0.56(14.3)
1/4	1/16	-MC-FT4-MN1	1.29(32.8)	0.38(9.7)	0.60(15.2)	0.12(3.0)	056(14.3)	0.50(12.7)
1/4	1/8	-MC-FT4-MN2	1.2932.8)	0.38(9.7)	0.60(15.2)	0.19(4.8)	0.56(14.3)	0.50(12.7)
1/4	1/4	-MC-FT4-MN4	1.49(37.8)	0.56(14.2)	0.60(15.2)	0.19(4.8)	0.56(14.3)	0.56(14.3)
1/4	3/8	-MC-FT4-MN6	1.51(38.4)	0.56(14.2)	0.60(15.2)	0.19(4.8)	0.56(14.3)	0.69(17.5)
1/4	1/2	-MC-FT4-MN8	1.75(44.5)	0.75(19.1)	0.60(15.2)	0.19(4.8)	0.56(14.3)	087(22.2)
5/16	1/8	-MC-FT5-MN2	134(34.0)	0.38(9.7)	0.64(16.3)	0.19(4.8)	063(15.9)	0.56(14.3)
5/16	1/4	-MC-FT5-MN4	1.5238.6)	0.38(9.7)	0.64(163)	0.25(6.4)	0.63(15.9)	0.56(14.3)
5/16	3/8	-MC-FT5-MN6	1.54(39.1)	0.56(14.2)	0.64(16.3)	0.25(6.4)	0.63(15.9)	0.69(17.5)
5/16	1/2	-MC-FT5-MN8	1.79(45.5)	0.75(19.1)	0.64(16.3)	0.25(6.4)	0.63(15.9)	087(22.2)
3/8	1/8	-MC-FT6-MN2	1.39(35.3)	0.38(9.7)	0.66(16.8)	0.19(4.8)	0.69(17.5)	0.63(15.9)
3/8	1/4	-MC-FT6-MN4	1.57(39.9)	0.56(14.2)	0.66(16.8)	0.28(7.1)	0.69(17.5)	0.63(15.9)
3/8	3/8	-MC-FT6-MN6	1.57(39.9)	0.56(14.2)	0.66(16.8)	0.28(7.1)	0.69(17.5)	0.69(17.5)
3/8	1/2	-MC-FT6-MN8	1.82(46.2)	0.75(19.1)	0.66(16.8)	0.28(7.1)	0.69(17.5)	087(22.2)
1/2	1/8	-MC-FT8-MN2	1.53(38.9)	0.38(9.7)	0.90(22.9)	0.19(4.8)	0.87(22.2)	081(20.6)
1/2	1/4	-MC-FT8-MN4	1.71(43.4)	0.56(14.2)	0.90(22.9)	0.28(7.1)	0.87(22.2)	081(20.6)
1/2	3/8	-MC-FT8-MN6	1.71(43.4)	0.56(14.2)	0.90(22.9)	0.38(9.7)	0.87(22.2)	081(20.6)
1/2	1/2	-MC-FT8-MN8	1.93(49.0)	0.75(19.1)	0.90(22.9)	0.41(10.4)	0.87(22.2)	087(22.2)
1/2	3/4	-MC-FT8-MN12	1.99(50.5)	0.75(19.1)	0.90(22.9)	0.41(10.4)	0.87(22.2)	1.06(27.0)
1/2	1	-MC-FT8-MN16	2.25(57.2)	0.94(23.9)	0.90(22.9)	0.41(10.4)	0.87(22.2)	13734.9)
5/8	1/4	-MC-FT10-MN4	1.74(44.2)	0.56(14.2)	0.96(24.4)	0.28(7.1)	1.00(25.4)	0.94(23.8)
5/8	3/8	-MC-FT10-MN6	1.74(44.2)	0.56(14.2)	0.96(24.4)	0.38(9.7)	1.00(25.4)	0.94(23.8)
5/8	1/2	-MC-FT10-MN8	1.93(49.0)	0.75(19.1)	0.96(24.4)	0.47 (11.9)	1.00(25.4)	0.94(23.8)
5/8	3/4	-MC-FT10-MN12	1.99(50.5)	0.75(19.1)	0.96(24.4)	0.50(12.7)	1.00(25.4)	1.06(27.0)
3/4	3/8	-MC-FT12-MN6	1.99(50.5)	0.56(14.2)	0.96(24.4)	0.41(10.4)	1.13(28.6)	1.06(27.0)
3/4	1/2	-MC-FT12-MN8	2.25(57.2)	0.75(19.1)	0.96(24.4)	0.47 (11.9)	1.13(28.6)	1.06(27.0)
3/4	3/4	-MC-FT12-MN12	1.99(50.5)	0.75(19.1)	0.96(24.4)	0.62(15.7)	1.13(28.6)	1.06(27.0)
3/4	1	-MC-FT12-MN16	2.25(57.2)	0.94(23.9)	0.96(24.4)	0.62(15.7)	1.13(28.6)	13734.9)
7/8	1/2	-MC-FT14-MN8	2.26(57.4)	0.75(19.1)	1.02(25.9)	0.47 (11.9)	1.25(31.8)	1.19(30.2)
7/8	3/4	-MC-FT14-MN12	2.45(62.2)	0.75(19.1)	1.02(25.9)	0.62(15.7)	1.25(31.8)	1.19(30.2)
7/8	1	-MC-FT14-MN16	2.45(62.2)	0.94(23.9)	1.02(25.9)	0.72 (18.3)	1.25(31.8)	137(34.9)
1	1/2	-MC-FT16-MN8	3.04(77.2)	0.75(19.1)	1.23(31.2)	0.47 (11.9)	1.50(38.1)	137(34.9)
1	3/4	-MC-FT16-MN12	3.04(77.2)	0.75(19.1)	1.23(31.2)	0.62(15.7)	1.50(38.1)	13734.9)
1	1	-MC-FT16-MN16	3.50(88.9)	0.94(23.9)	1.23(31.2)	0.88(22.4)	1.50(38.1)	137(34.9)
11/8	1	-MC-FT18-MN16	2.45(62.2)	0.94(23.9)	1.23(31.2)	0.88(22.4)	1.81(46.0)	1.63(41.3)
11/4	1	-MC-FT20-MN16	3.04(77.2)	0.94(23.9)	1.62(41.1)	0.88(22.4)	1.87(47.6)	1.75(44.5)
11/4	11/4	-MC-FT20-MN20	3.04(77.2)	0.94(23.9)	1.62(41.1)	1.09(27.7)	1.87(47.6)	1.75(44.5)
