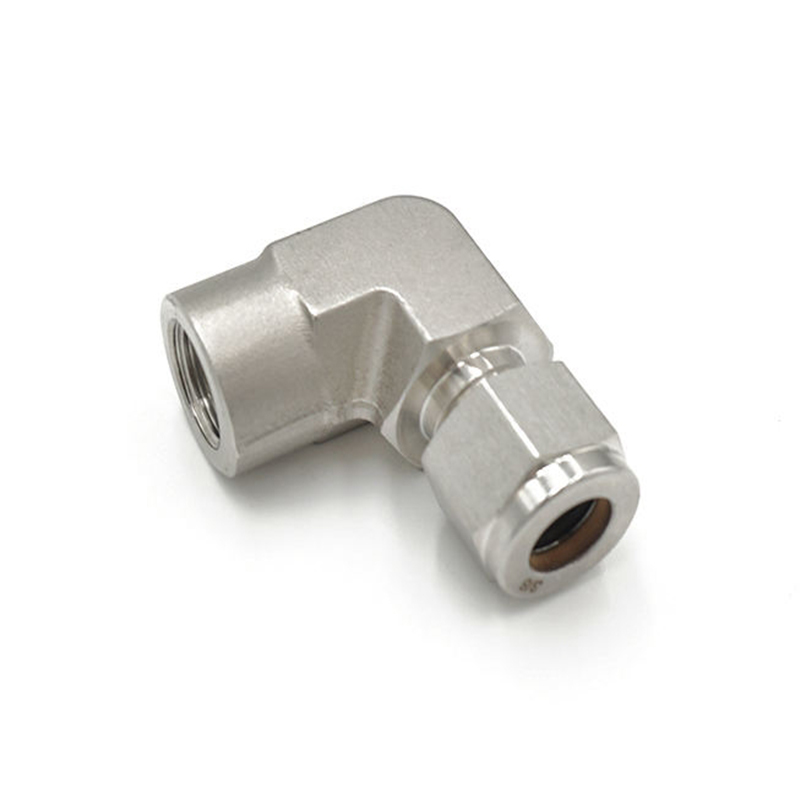

Female Cubitus Compressio Tube Diver

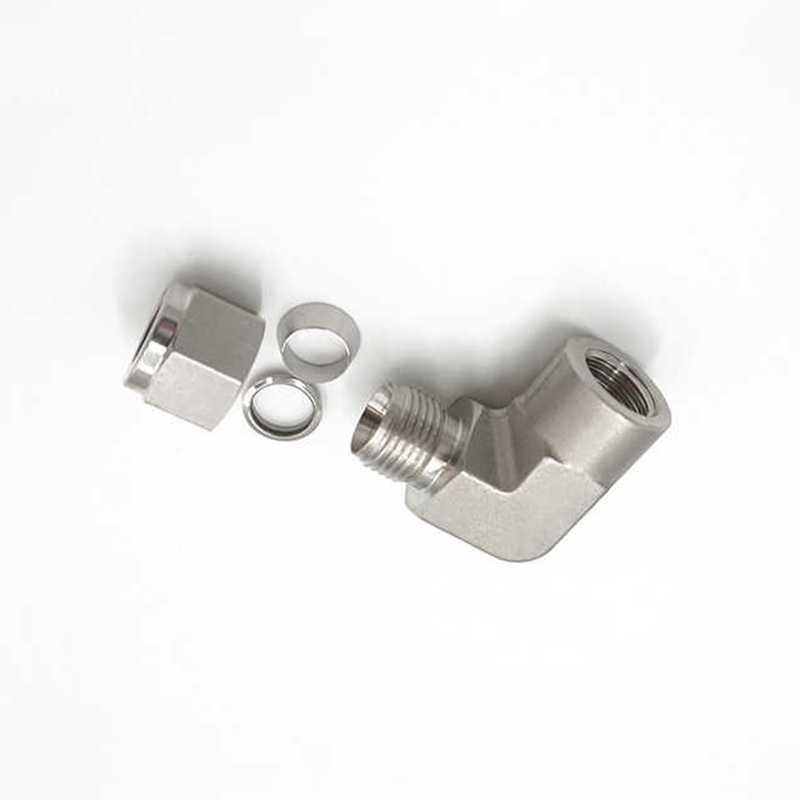

Ut pars magni-finis systematis nexus pipelineorum, incorrupta Ferro Feminae Cubitus Compressio Tube Fittings late in oleo, gas, chemico, cibo processus, medicina aliisque agris industrialibus utuntur. Connexionem ferrulei duplicis complexionis adoptat et nexum stamina externa, alta signatione ac firmitate. Duplex consilium ferruleum nexum pipelineum firmiorem et firmiorem reddit, et altum pressionem ambitus laborantis sustinere potest. Connexio ferrule efficaciter impedit resolutio per vibrationem vel pressionem fluctuationem pipelini per compaginem strictam inter ferrulam et pipelinum, ad salutem systematis pipelini procurandam. Connexio stamina externa, filum interfacetum praecise machinatum adhibet ut institutionem efficientem et disassembly curet. Connexio staminea torques altiores praebere potest, connexionem invigilare et ultrices vitare. Eius pars nux argento tractata est, quae suam corrosionem resistentiam et oxidationem emendare potest, et frictionem in connexione minuere, ita ut filum per frequentiam institutionis et disassembletici non induatur vel deformet..

Contactus Us

PREV: Nullus prior articulum DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Falsa Brand:SAM-LOK Connection: duplex ferrule et femina stamina

Figura: Aequale Postula Type:Unf,NPT,BSPT Codex Capitis: Hexagon

OD Size: 1/16''-1'',6mm-16mm

Structura: unio, cubitus, tee, crux, mole, mas vel femina iungo

Operationis Impetus: 3000- 6000psi

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Curatio tubus: plene annealed

Interiorem Cone: Speculum tincidunt processus

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	P-NPT MENSURA	Praecipua Ordinatio Numerus	Dimensio in(mm)
T-Tube O.D. (in.)	P-NPT MENSURA	Praecipua Ordinatio Numerus	L	B	C	D	E	F	Lx
1/16	1/16	-FE-FT1-FN1	0.71 (18.0)	0.39(9.9)	0.34(8.6)	0.31(7.9)	0.05(1.3)	0.44(11.1)	0.56(14.2)
1/16	1/8	-FE-FT1-FN2	0.81(20.6)	0.41(10.4)	0.34(8.6)	0.31(7.9)	0.05(1.3)	0.56(14.3)	0.75(19.1)
1/8	1/8	-FE-FT2-FN2	0.97(24.6)	0.41(10.4)	050 (12.7)	0.44(11.1)	0.09(2.3)	0.56(14.3)	0.75(19.1)
1/8	1/4	-FE-FT2-FN4	1.08(27.4)	0.59 (15.0)	0.50(12.7)	0.44(11.1)	0.09(2.3)	0.69(17.5)	0.88(22.4)
3/16	1/8	-FE-FT3-FN2	1.00(25.4)	0.41(10.4)	0.54(13.7)	0.50(12.7)	0.12(3.0)	05 (12.7)	0.75(19.1)
1/4	1/8	-FE-FT4-FN2	1.06(26.9)	0.41(10.4)	0.60(15.2)	0.56(14.3)	0.19(4.8)	0.56(14.3)	0.75(19.1)
1/4	1/4	-FE-FT4-FN4	1.17(29.7)	0.59 (15.0)	0.60(15.2)	0.56(14.3)	0.19(4.8)	0.69(17.5)	0.88(22.4)
1/4	3/8	-FE-FT4-FN6	1.25(31.8)	0.59 (15.0)	0.60(15.2)	0.56(14.3)	0.19(4.8)	0.81(20.6)	0.88(22.4)
1/4	1/2	-FE-FT4-FN8	1.36(34.5)	0.78(19.8)	0.60(15.2)	0.56(14.3)	0.19(4.8)	1.00(25.4)	1.12(28.4)
5/16	1/8	-FE-FT-FN2	1.13(28.7)	0.41(10.4)	0.64(16.3)	0.63(15.9)	0.25(6.4)	0.56(14.3)	0.75(19.1)
5/16	1/4	-FE-FT5-FN4	1.20(30.5)	0.59 (15.0)	0.64(16.3)	0.63(15.9)	0.25(6.4)	0.69(17.5)	0.88(22.4)
3/8	1/8	-FE-FT6-FN2	1.20(30.5)	0.41(10.4)	0.66(16.8)	0.69(17.5)	028(7.1)	0.63(15.9)	0.75(19.1)
3/8	1/4	-FE-FT6-FN4	1.23(31.2)	0.59 (15.0)	066(16.8)	069(17.5)	028(7.1)	069(17.5)	0.88(22.4)
3/8	3/8	-FE-FT6-FN6	1.31(33.3)	0.59 (15.0)	0.66(16.8)	0.69(17.5)	028(7.1)	0.81(20.6)	0.88(22.4)
3/8	1/2	-FE-FT6-FN8	1.42(36.1)	0.78(19.8)	0.66(16.8)	0.69(17.5)	028(7.1)	1.00(25.4)	1.12(28.4)
1/2	1/4	-FE-FT8-FN4	1.42(36.1)	0.59 (15.0)	0.90(22.9)	0.87(22.2)	0.41(10.4)	0.81(20.6)	0.88(22.4)
1/2	3/8	-FE-FT8-FN6	1.42(36.1)	0.59 (15.0)	0.90(22.9)	0.87(22.2)	0.41(10.4)	0.81(20.6)	0.88(22.4)
1/2	1/2	-FE-FT8-FN8	1.53(38.9)	0.78(19.8)	0.90(22.9)	0.87(22.2)	0.41(10.4)	1.00(25.4)	1.12(28.4)
5/8	3/8	-FE-FT10-FN6	1.50(38.1)	0.59 (15.0)	0.96(24.4)	1.00(25.4)	0.50(12.7)	0.94(23.8)	0.88(22.4)
5/8	1/2	-FE-FT10-AN8	1.57(39.9)	0.78(19.8)	0.96(24.4)	1.00(25.4)	0.50(12.7)	1.06(27.0)	1.12(28.4)
3/4	1/2	-FE-FT12-AN8	1.57(39.9)	0.78(19.8)	0.96(24.4)	1.13(28.6)	0.62(15.7)	1.06(27.0)	1.12(28.4)
3/4	3/4	-FE-FT12-FN12	1.76(44.7)	0.81(20.6)	0.96(24.4)	1.13(28.6)	0.62(15.7)	1.37(34.9)	1.25(31.8)
7/8	3/4	-FE-FT14-FN12	1.76(44.7)	0.81(20.6)	1.02(25.9)	1.25(31.8)	0.72 (18.3)	1.37(34.9)	1.25(31.8)
1	3/4	-FE-FN16-FN12	1.93(49.0)	0.81(20.6)	1.23(31.2)	1.50(38.1)	0.88(22.4)	1.37(34.9)	1.25(31.8)
1	1	-FE-FT6-FN16	2.11(53.6)	1.00(25.4)	1.23(31.2)	1.50(38.1)	0.88(22.4)	1.69(42.9)	1.50(38.1)

T-Tube O.D. (mm)	P-NPT MENSURA	Basic Ordering Numerus	Dimensio mm(in)
T-Tube O.D. (mm)	P-NPT MENSURA	Basic Ordering Numerus	L	B	C	D	E	F	Lx
6	1/8	-FE-MT6-FN2	27.0 (1.06)	10.4(0.41)	15.3(0.60)	14.0(0.55)	4.8(0.19)	12.7(0.50)	19.0(0.75)
6	1/4	-FE-MT6-FN4	29.8 (1.17)	15.0(0.59)	15.3(0.60)	14.0(0.55)	4.8(0.19)	17.5(0.69)	22.4(0.88)
8	1/8	-FE-MT8-FN2	28.8(1.13)	10.4(0.41)	16.2(0.64)	16.0(0.63)	4.8(0.19)	14.3(0.56)	19.1(0.75)
8	1/4	-FE-MT8-FN4	30.6 (1.20)	15.0(0.59)	16.2(0.64)	16.0(0.63)	6.4(0.25)	17.5(0.69)	22.4(0.88)
10	1/4	-FE-MT10-FN4	33.5 (1.32)	15.0(0.59)	17.2(0.68)	19.0(0.75)	7.9(0.31)	20.6(0.81)	22.4(0.88)
10	3/8	-FE-MT10-FN6	33.5 (1.32)	15.0(0.59)	17.2(0.68)	19.0(0.75)	7.9(0.31)	20.6(0.81)	22.4(0.88)
10	1/2	-FE-MT10-FN8	36.6 (1.44)	19.8(0.78)	17.2(0.68)	19.0(0.75)	7.9(0.31)	25.4 (1.00)	28.5(1.12)
12	1/4	-FE-MT12-FN4	36.0 (1.42)	15.0(0.59)	22.8(0.90)	22.0(0.87)	7.9(0.31)	20.6(0.81)	22.4(0.88)
12	3/8	-FE-MT12-FN6	36.0 (1.42)	15.0(0.59)	22.8(0.90)	22.0(0.87)	9.5(0.37)	20.6(0.81)	22.4(0.88)
12	1/2	-FE-MT12-FN8	38.8 (1.53)	19.8(0.78)	22.8(0.90)	22.0(0.87)	9.5(0.37)	25.4 (1.00)	28.4(1.12)
16	3/8	-FE-MT16-FN6	39.5 (1.56)	15.0(0.59)	24.4(0.96)	25.0(0.98)	9.5(0.37)	27.0 (1.06)	23.6(0.93)
16	1/2	-FE-MT16-FN8	39.5 (1.56)	19.8(0.78)	24.4(0.96)	25.0(0.98)	12.7(0.50)	27.0 (1.06)	28.5(1.12)
