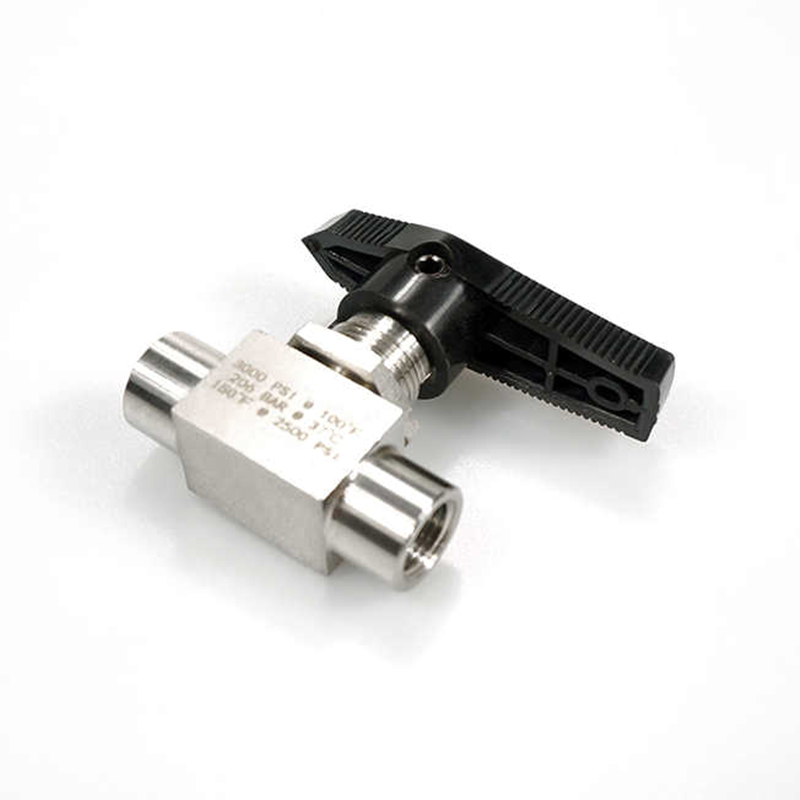

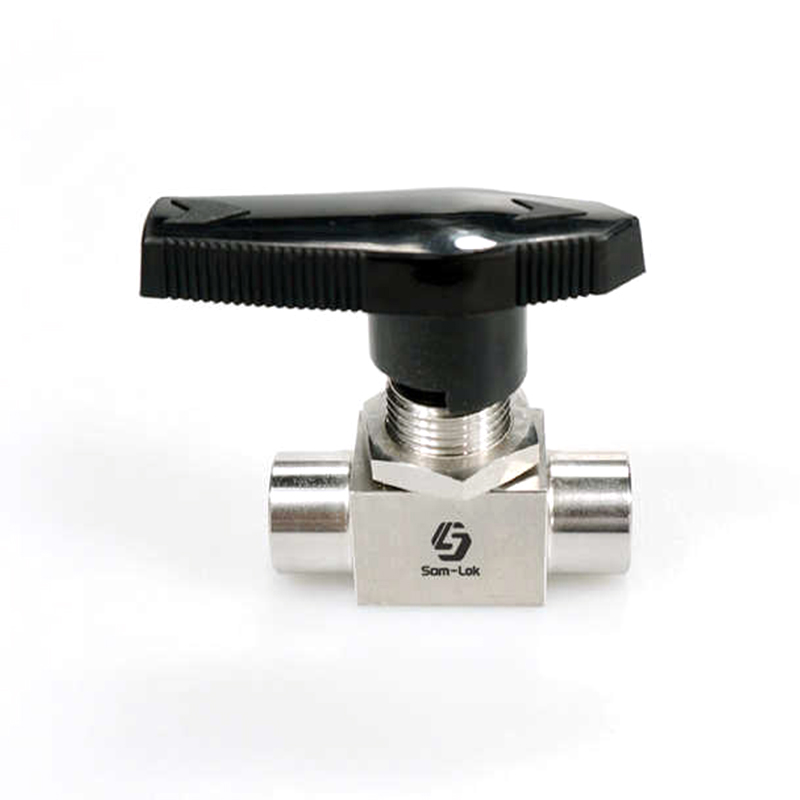

Steel Female NPT Thread Ball Valve

Steel Female NPT Thread Ball Valvae immaculatus est valvae summus perficientur in dicione et moderamine liquorum, gasorum et aliorum liquorum adhibita. Utitur ferro intacta qualitas valvae corporis materialis. Materiae hae optimae corrosioni resistentiae habent et exesi chemicorum, aquae salsae et aliorum humorum mordalium resistere possunt. NPT (National Pipe Tapered) est filum acuminatum quod optimum effectum obsignationis praebere potest, evitans problema lacus lacus, qui in nexibus parallelis filo translaticiis occurrere potest. Protinus ad fistulas externas coniungi potest, quae difficultatem temporis institutionis inaugurare et minuere facile est. Globus intra valvulam praecisum est ut eius superficies sit levis et sine lappa, quae in operatione canalem fluidum firmiorem et leniorem praebere potest. Consilium pilae permittit ut cito aperiatur vel claudatur valvae, dum potestatem fluxum efficientis praebeat.

Contactus Us

PREV: Stainless Steel Air Release Ball Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

●Operans pressionem usque ad: 3000 psig (207 talea)
● temperies operans: -65 °F ad 300 °F (-54 °F ad 148°F)
●Size from 1/16in. ad 3/4in. vel 3mm ad 18mm
Valvae genera recta per tres modo et rectus-angulus
-Una pars valvae corporis et una pars pila hastile
Zonae mortuae nullae, ut area inter pilam et thalamum valvae
Top ostium consilio online inspici et reparari potest postquam ratio removetur

Parameter

Praecipua Ordinatio Numerus	Connexio Type et Size	Orificium in. (mm)	Cv		Dimensio, m. (mm)
Praecipua Ordinatio Numerus	Connexio Type et Size	Orificium in. (mm)	Rectus	Angulus	A	B	C	E	F	H
-OIB-FN2-3	1/8 Male NPT	0.13 (3.2)	0.50	0.30	1.63 (41.4)	0.28 (7.1)	0.34 (8.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-FN2-5	1/8 Male NPT	0.19 (4.8)	0.90	0.70	2.00 (50.8)	0.38 (9.7)	0.44 (11.2)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-FN4-5	1/4 Femina NPT	0.19 (4.8)	0.90	0.75	2.06 (52.3)	0.38 (9.7)	0.44 (11.2)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-FN4-7	1/4 Femina NPT	0.28 (7.1)	2.60	1.70	2.50 (63.5)	0.56 (14.2)	0.56 (14.2)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-FN6-5	3/8 Male NPT	0.28 (7.1)	2.60	1.50	2.50 (63.5)	0.56 (14.2)	0.56 (14.2)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-FN8-10	1/2 Femina NPT	0.41 (10.3)	6.30	3.50	3.12 (79.2)	0.69 (17.5)	0.69 (17.5)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
