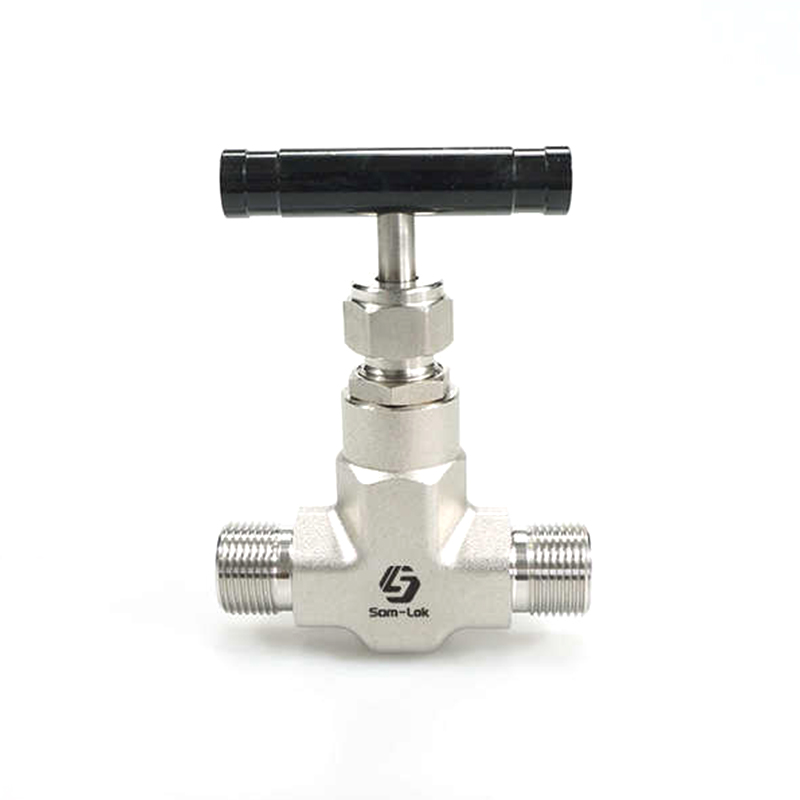

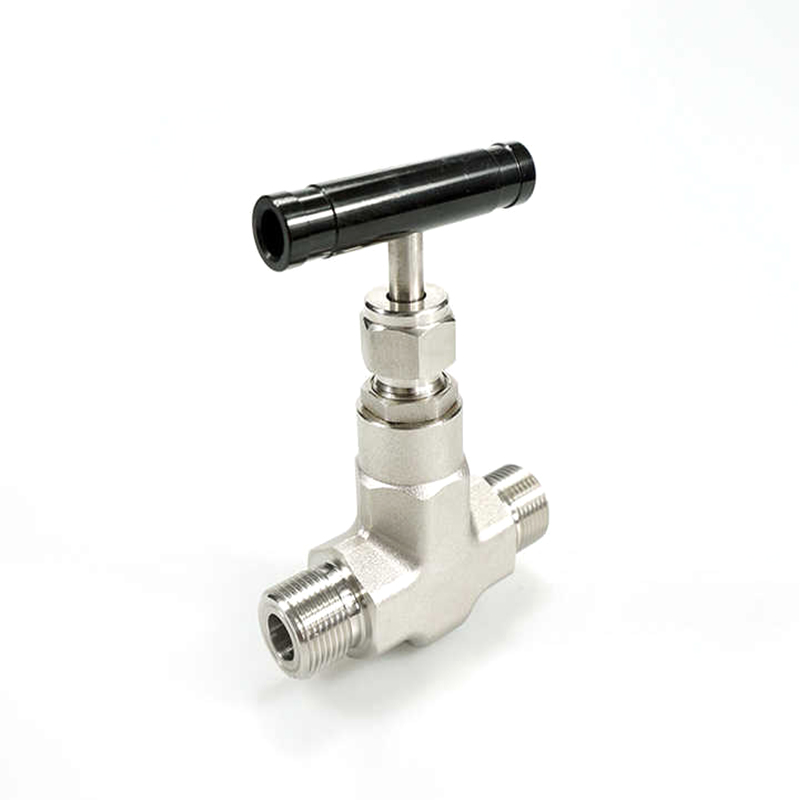

Stainless Steel Male Thread acus Valvae

Stainless Steel Male Thread acus Valvae est valvae liquoris imperium summus, quod manually operatum est, et cono interiore accurato consilio utitur ut fluxum accommodet. Maxime apta est moderatio pressurae liquorum, gasorum, oleis, aquae, instrumentorum acidicorum et alkalini. Haec acus valvae 10000PSI NPT structuram (Pipe Nationalis) structuram induit, quae altissimas impressiones laborantes sustinere potest atque obsignationem eius ac stabilem obeundis sub magni momentis ambitibus obtinet. Corpus valvae factum est ex ferro immaculato, quod praestantem vim mechanicam et corrosionem resistentiam habet, et corrosioni medii ad valvulam efficaciter resistere potest, operationem stabilem diuturnum procurans. Accommodare potest ad communes temperaturas industriales regiones, eiusque consilium non solum in cella temperie stabiliter operari, sed etiam fluxum ad caliditatem caliditatem efficaciter regere potest..

Contactus Us

PREV: Stainless Steel Integral Bonnet Forged Double Ferrule Acus Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Structura: 10000PSI Male Male NPT Acus Valvae

Pressura: Pressura

Potentia: Manuale

Material: Steel

Temperature of Media: Normal Temperature

Media: aqua, oleum, gas, acidum vel basi

Port Size: 1/4'' - 11/2''

Originis locus: Jiangsu, Sina (continens)

Exemplar Number: 10000PSI Male NPT acus Valvae

Applicationem: General

size: 1/4''- 11/2'' 6~ 38mm

opus pressura: 10000psi vel ut tuam

Temperature laborans: 0°F ad 450°F (-18℃ ad 232℃)

nexum: femina, copulatio vel iuncta

technicae: Steel 10000PSI Male Male acus Valvae

Curatio tubus: plene annealed

Nux Curatio: argentum plantatum

Interiorem Cone: Speculum tincidunt processus

Parameter

-FNH-MN2-3	1/8 Male NPT	1/8 Male NPT	0.12 (3.0)	0.20	1.00 (25.4)	1.008 (25.4)	0.53 (13.5)	2.17 (55.0)	0.71 (18.0)	0.77 (19.6)	2.85 (72.5)
-FNH-MN4-4	1/4 Male NPT	1/4 Male NPT	0.16 (4.0)	0.35	1.06 (27.0)	1.06 (27.0)	0.53 (13.5)	2.17 (55.0)	0.71 (18.0)	0.77 (19.6)	2.85 (72.5)
-FNH-MN6-5	3/8 Male NPT	3/8 Male NPT	0.20 (5.1)	0.56	1.14 (29.0)	1.14 (29.0)	0.62 (15.8)	2.50 (63.5)	0.87 (22.0)	0.96 (24.4)	3.38 (85.8)
-FNH-MN8-6	1/2 Male NPT	1/2 Male NPT	0.25 (6.4)	0.70	1.50 (38.1)	1.50 (38.1)	0.62 (15.8)	2.50 (63.5)	0.87 (22.0)	0.96 (24.4)	3.38 (85.8)
-FNH-MN12-7	3/4 Male NPT	3/4 Male NPT	0.29 (7.5)	0.95	1.58 (40.0)	1.58 (40.0)	0.80 (20.2)	3.50 (88.9)	1.10 (28.3)	1.08 (27.5)	3.78 (96.0)
-FNH-MN16-9	1 Male NPT	1 Male NPT	0.36 (9.1)	1.60	1.97 (50.0)	1.97 (50.0)	1.30 (33.0)	5.00 (127)	1.61 (41.0)	1.45 (36.8)	6.50 (165)
