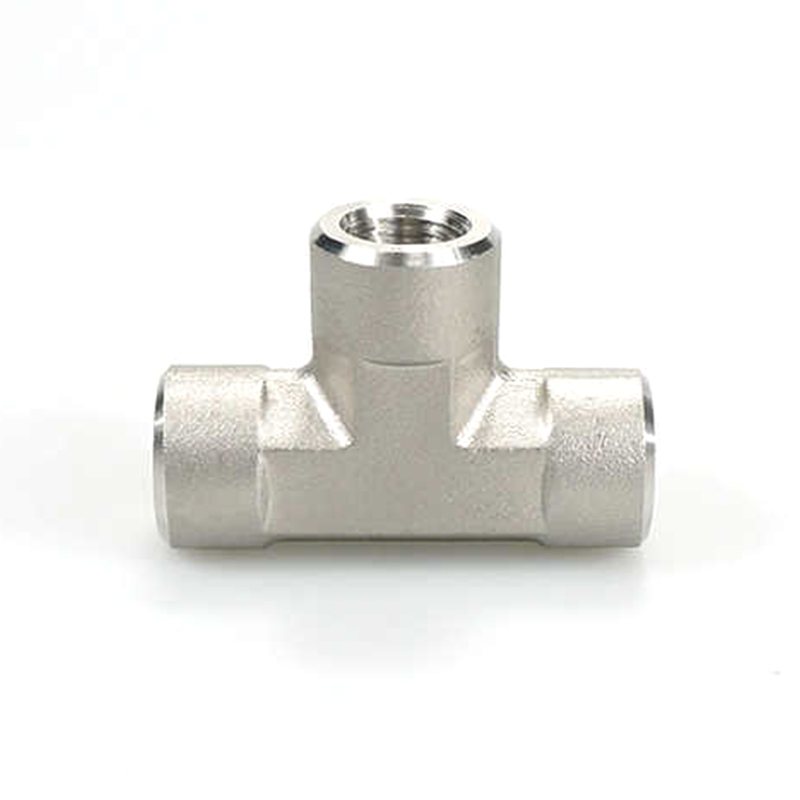

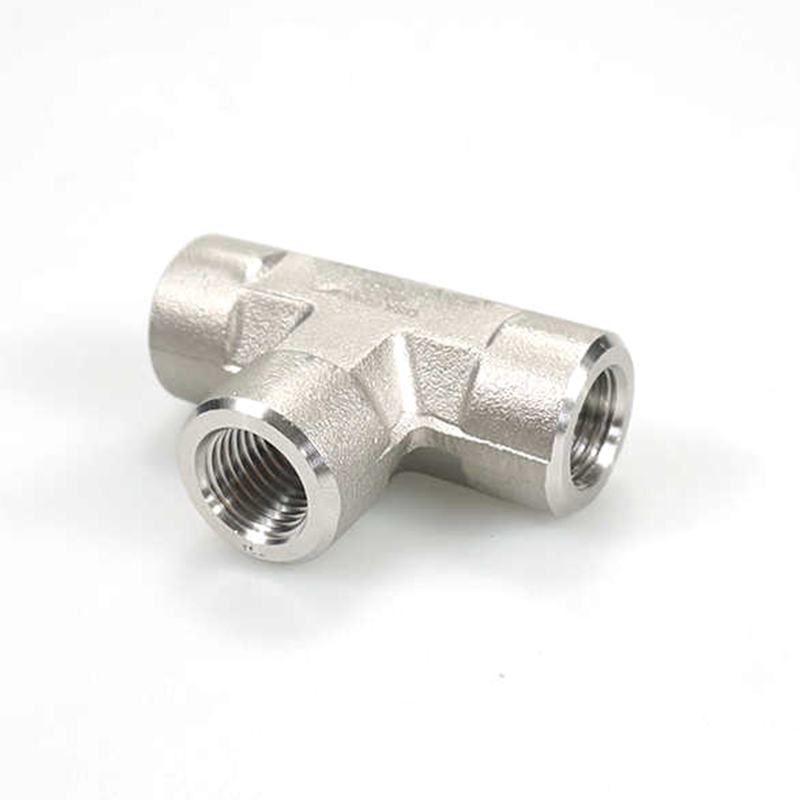

Steel Female Tee Pipe Fitting

Immaculatam Steel Feminam Tee Pipe Fitting producitur ex processu cudendo. Forma fabricandi est fabricandi modus, qui metallum deformat applicando pressionem altam. Processus fictus grana metallica densiora facit per deformationem metallicae plasticae, vim compressivam organorum organorum meliorat, et efficaciter impedire fracturam vel deformationem sub magna pressione environment. Fistula ficta incorrupta ferro caerimonias habent bonam lassitudinem resistendi, et pressionem repetitam sine lassitudine rimas mutationes sustinere potest. Fistula haec aptat staminea nexum. Per nexum stamineum, processus institutionis simplex et conveniens est. Tantum tibi fistulam aptare debes cum tibia fila externa respondente aptare et obstringere ut firmam connexionem caveas ac ne ultrices.

Contactus Us

PREV: Crux Female Cross Pipe Fitting DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Customer: Available

Medium: oleum, aqua, etc.

Size: 1/8-1 1/2inh

Originis locus: Jiangsu, Sina (continens)

Connection: femina filum

Caput Code: Circum

Applicationem: General

Logo: Any logo is available

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Steel Female Tee Pipe Fitting Manufacturers and Steel Female Tee Pipe Fitting Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.

Testimonium Honoris

News

Quid est valvae multiplex? Machinarium Guide ad Compact Valve Manifolds
10 Jun, 2026
A valvae multiplex unus est machinatus vel fabricatus clausus, qui multiplices valvulas integrat, vias fluunt, portus in unum convent...
Read More
What Is a Check Valve Used For? Applications & Function
03 Jun, 2026
A reprehendo valvae adhibetur ut fluidum vel gas influat in unam tantum partem, dum automatice impediunt fluxum vicissim cont...
Read More
Quomodo globus Valvae Laboris? Genera, Usus & Electio Guide
27 May, 2026
Globus valvula operatur per sphaeram concavam, sphaeram perforatam, quae vocatur pila, intra corpus valvae ad fluxum fluidi temperandum. C...
Read More
What Is Seamless Pipe: Tubing Types, Grades & Manufacturers
20 May, 2026
A seamless pipe is a hollow cylindrical tube manufactured without a welded seam — formed instead by extruding or piercing a solid steel billet throug...
Read More
VCR Fittings: A Guide to Design, Installation, and Electio
13 May, 2026
In contextu systemata fluidorum et gasorum, VCR stands for Vacuum — proprietatis faciei-sigillum a Cajon Company (nunc pars Swagelok)...
Read More
Quid sunt Pipe Clamps Used For? A Guide
06 May, 2026
Fibulae pipe adhibentur ad securam, fovendam, copulandam, vel align fistulas et fabricas tubulosas per plumbing, constructi...
Read More

Nuntius videre

Feminam NPT Threads
P-NPT Magnitudo	Praecipua Ordinatio Numerus	Dimensio in(mm)				Operandi Pressura psig(bar)
P-NPT Magnitudo	Praecipua Ordinatio Numerus	L	F(Flat)	B	E	316SS, Steel	Brass
1/16	-TFT-FN1	0.86(21.8)	0.44(11.1)	0.39(9.9)	0.19(4.8)	6700(460)	3300 (227)
1/8	-TF-FN2	1.04(26.4)	0.50(12.7)	0.41(10.4)	0.34(8.6)	6200(427)	3100(213)
1/4	-TF-FN4	1.17(29.7)	0.69(17.5)	0.59 (15.0)	0.45 (11.4)	7200(496)	3600(248)
3/8	-TF-FN6	1.42(36.1)	0.81(20.6)	0.59 (15.0)	0.59 (15.0)	5600(385)	2800 (192).
1/2	-TF-FN8	1.56(39.6)	1.00(25.4)	0.78(19.8)	0.73 (18.5)	5600(385)	2800 (192).
3/4	-TFT-FN12	1.92(48.8)	1.25(31.8)	0.81(20.6)	0.94(23.9)	5100(351)	2500 (172)
1	-TFT-FN16	1.91(48.5)	1.69(42.9)	1.00(25.4)	1.17(29.7)	6400(440)	3200 (220)
11/4	-TF-FN20	2.35(59.8)	2.00(50.8)	1.00(25.4)	1.46(37.2)	3100(213)	1600(110)
11/2	-TF-FN24	2.56(65.0)	2.50(63.5)	1.09(27.7)	1.70(43.3)	5100(351)	2500 (172)
