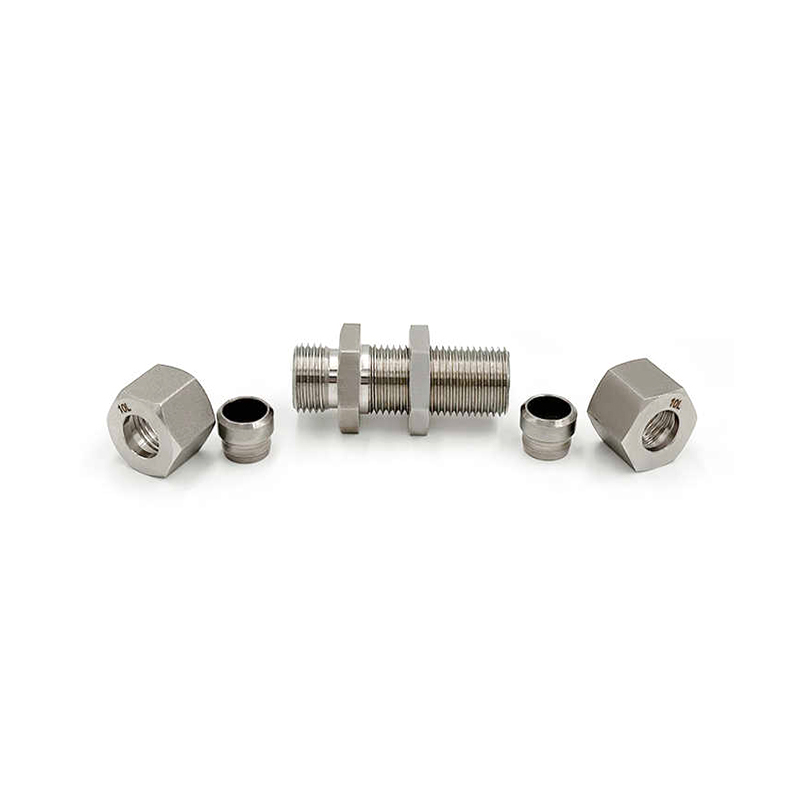

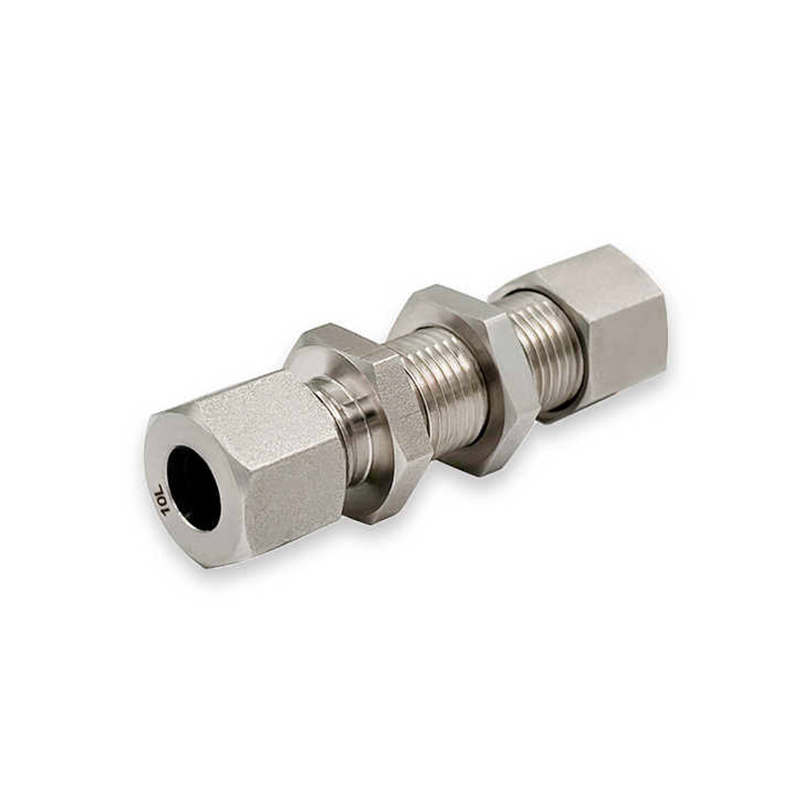

Hydraulic Bulkhead Unionis Fitting

Praecipuum munus Unionis Hydraulicae Bulkhead Steel Immaculatae Apta est coniungere fistulam hydraulicam cum machina habitationis vel muri continentis, firmam ac securam canalem transmissionis fluidi praebens. Connexionem stabilem praestat et lacus sub alto pressione per internam compagem filo impedit efficaciter, muri metalli crassitiem designat et systema signandi. Haec iunctura duplicem modum signandi consilium capit, et duae extremitates iuncturae ab O-anulis duplicia obsignantur ut lacus non sit cum liquor per iuncturam parietis transit. Connexio etiam designata est cum aucta filo vel fibulae structura, quae non solum fidem obtinet sigilli, sed etiam ut ne sub vibratione vel vi externa solvatur. Praeparatur etiam cum fabrica anti-solutionis densis, utens duplice densis nucibus, rotundis densis paxillis, densis anulis et aliis anti-solvendis remediis ut nexus iuncturae stabilis semper sit..

Contactus Us

PREV: Diver HYDRAULICUS VERTICULA Connector O-anulum DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Typus: Unionis

Originis locus: Jiangsu, Sina (continens)

Connexio: Unius Ferrule

Parameter

SV Pars neque.	Series Operatio Pressura (bar/psi)	Tubus o.d.	M	l1	12	L1	L2	S1	S2	S3
-SV06L	Llight 315 bar 4560 psi	6	M12x1.5	7	27	22	42	17	14	17
-SV08L		8	M14x1.5	8	27	23	42	19	17	19
-SV10L		10	M16×1.5	10	28	25	43	22	19	22
-SV12L		12	M18×1.5	10	29	25	44	24	22	24
-SV15L		15	M22x1.5	12	31	27	46	27	27	30
-SV18L		18	M26×1.5	13.5	32.5	30	49	32	32	36
-SV22L	160 bar 2320 psi	22	M30x2	16.5	34.5	33	51	36	36	41
-SV28L		28	M36x2	18.5	35.5	35	52	41	41	46
-SV35L		35	M45x2	18.5	36.5	40	58	50	50	55
-SV42L		42	M52x2	19	36	42	59	60	60	65
-SV06S	S gravis 630 bar 9130 psi	6	M14x1.5	12	29	27	44	19	17	19
-SV08S		8	M16×1.5	13	29	28	44	22	19	22
-SV10S		10	M18×1.5	14.5	29.5	31	46	24	22	24
-SV12S		12	M20x1.5	14.5	30.5	31	47	27	24	27
-SV14S		14	M22x1.5	17	32	35	50	30	27	30
-SV16S	400 bar 5800 psi	16	M24×1.5	16.5	31.5	35	50	32	30	32
-SV20S		20	M30x2	17.5	33.5	39	55	41	36	41
-SV25S		25	M36x2	20	35	44	59	46	46	46
-SV30S		30	M42x2	21.5	37.5	48	64	50	50	50
-SV38S	315 bar 4560 psi	38	M52x2	22	37	53	68	65	60	65
