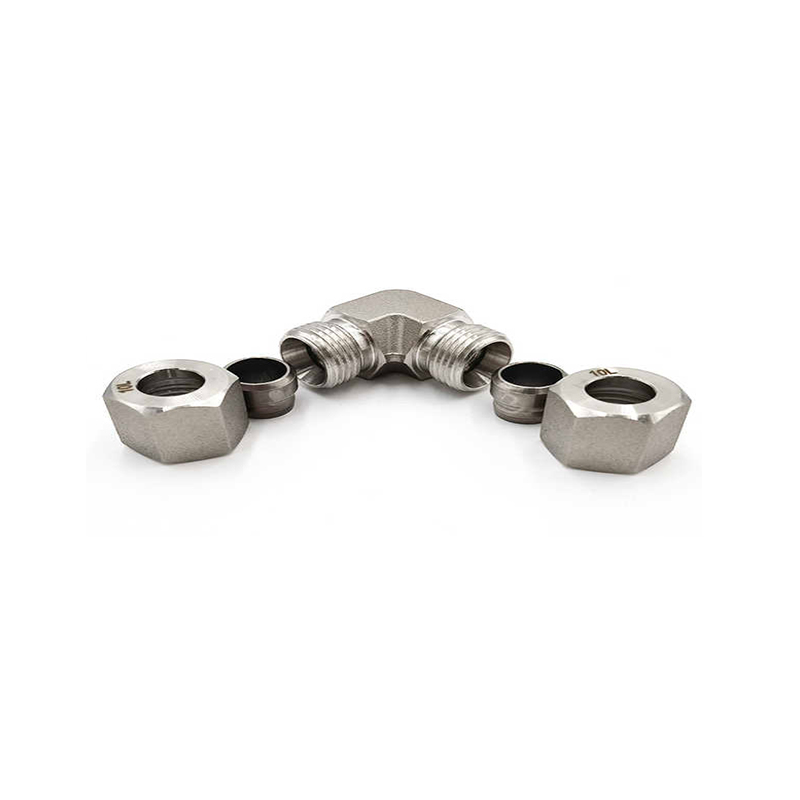

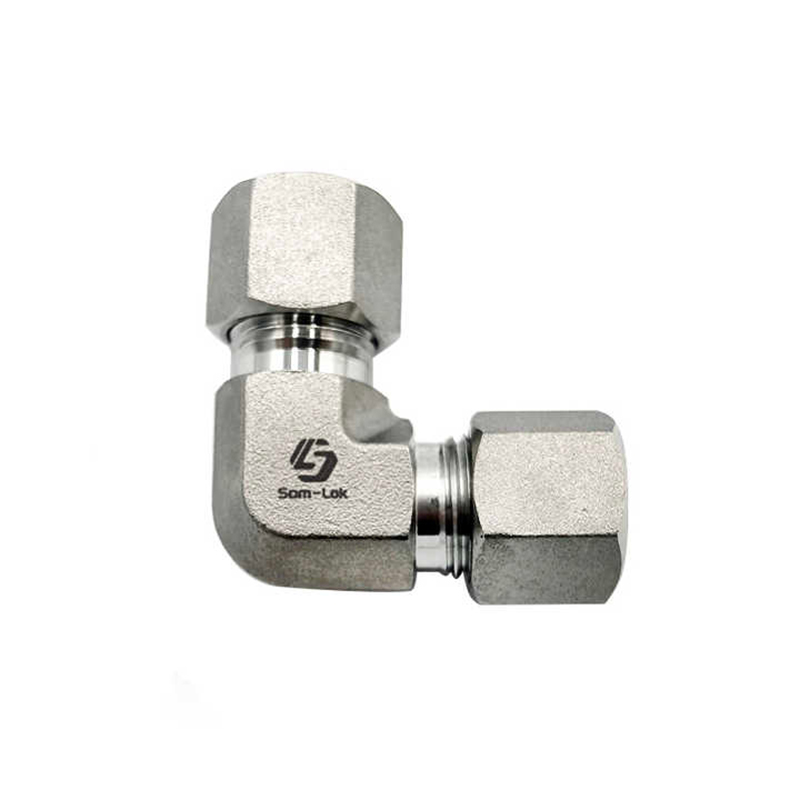

Stainless Steel Hydraulic Elbow Union Fitting

90-gradus cubiti configurationis de Cubito Hydraulico Steel Unionis Hydraulicae Aptus efficaciter mutat directionem fluxum fluidi hydraulici sine pressione damnum significante causando, per quod optimizing ratio operandi. Simplex via praebet partes connectendi vel disiungendi, faciliorem coetum et disconsionem faciliorem. Facilis haec institutionis vel conservationis pluma adiuvat ratio temporis extenuandi sine disgregationi maxime de network hydrau. Immaculata Steel Hydraulica Cubitus Unionis Opportunus designatus est ad tolerandas condiciones extremas operandas. Potest sustinere pressuras altas, usque ad plura milia psi, et apta ad systemata hydraulica in industriis, sicut in constructione, fodienda et gravi fabricando, valet. Leak-probationem sigillum formare potest, et ad iunctorum filorum subtilitatem machinatio, cum materia signandi qualitatem coniunctam, ut oleum hydraulicum in systemate tuto retineatur.

Contactus Us

PREV: Unio Hydraulica Steel Tee Fitting DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Typus: Unionis

Originis locus: Jiangsu, Sina (continens)

Connection: Singulus Ferrule

Parameter

W Pars NO.	Series Operatio Pressura (bar/psi)	Tubus o.d.	L2	L2	S1	S2
W Pars NO.	Series Operatio Pressura (bar/psi)	Tubus o.d.	L2	L2	S1	S2
-W04LL	LL veryo lux 100 bar 1450ps	4	11	21	9	10
-W06LL		6	9.5	21	11	12
-W08LL		8	11.5	23	12	14
-W10LL		10	12.5	24	14	17
-W12LL		12	13	25	17	19
-W06L	Dominus lux 315 bar 4560psi	6	12	27	12	14
-W08L		8	14	29	14	17
-W10L		10	15	30	17	19
-W12L		12	17	32	19	22
-W15L		15	21	36	19	27
-W18L		18	23.5	40	24	32
-W22L	160 bar 2320psi	22	27.5	44	27	36
-W28L		28	30.5	47	36	41
-W35L		35	34.5	56	41	50
-W42L		42	40	63	50	60
-W06S	S gravis 630 bar 9130ps	6	16	31	14	17
-W08S		8	17	32	17	19
-W10S		10	17.5	34	19	22
-W12S		12	21.5	38	22	24
-W14S		14	22	40	19	27
-W16S	400 bar 5800ps	16	24.5	43	24	30
-W20S		20	26.5	48	27	36
-W25S		25	30	54	36	46
-W30S		30	35.5	62	41	50
-W38S	315 bar 4560psi	38	41	72	50	60
