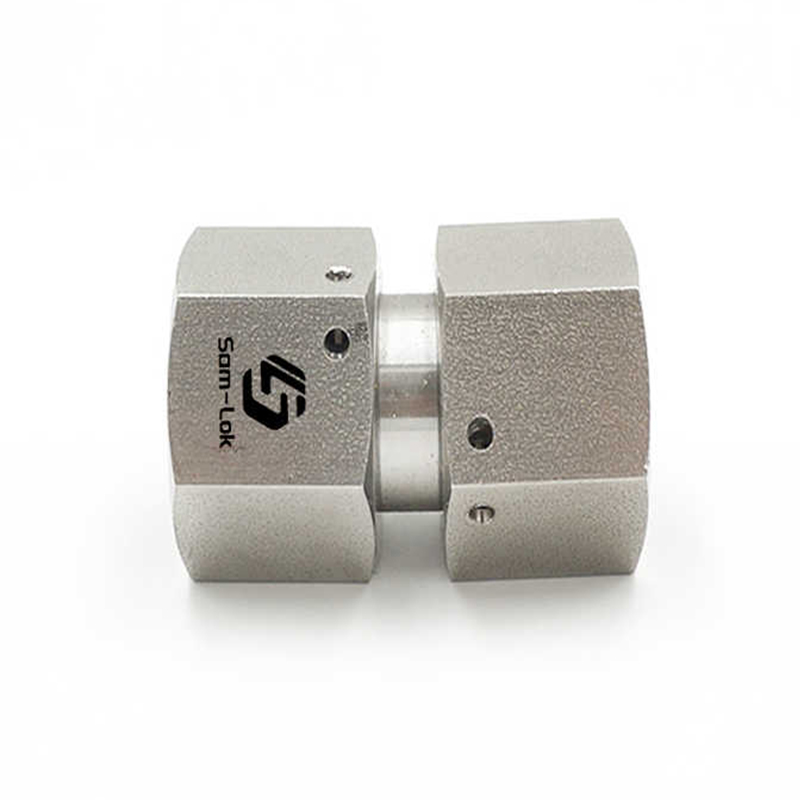

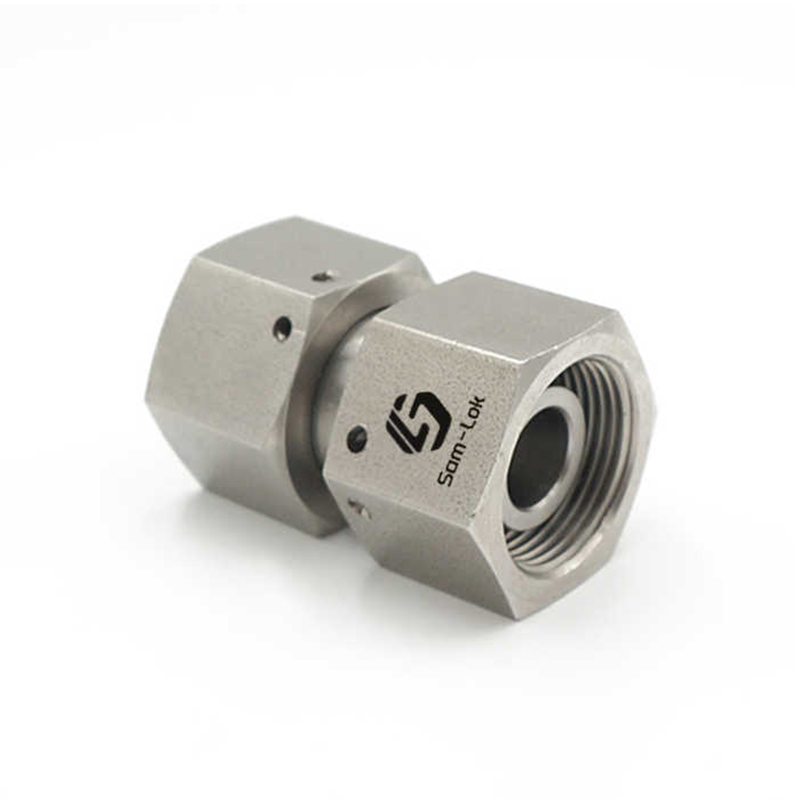

Steel Hydraulic Swivel Unionis Fitting

Praecipuum munus de Immaculata Steel Hydraulica Swivel Unio Opportunus est coniungere fistulas hydraulicas et munus gyrationis flexibile praebere. Ponitur pro alta pressura transmissionis liquidae, ut soleatus hydraulicus, cylindrici hydraulici, motores hydraulici et alia instrumenta. Swivel iunctura efficaciter solvere problemata torturae, fractionis vel damni fixationis tibiarum et armorum causata est. Libertatem gyratorii fluidi fistulae transmissionis praebet. Propositum rotationis huius producti permittit fistulas hydraulicas libere gyrari in operatione systematis, vitando tortuosos, deformationes vel nimiam tibiarum indumentum ob fixationem. Munus rotationis efficaciter extensum et pressum damnum exercituum et tibiarum hydraulicarum minuit, inde necessitatem minuit crebra tibiarum reponendarum..

Contactus Us

PREV: Nullus prior articulum DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Typus: Unionis

Originis locus: Jiangsu, Sina (continens)

Connection: Singulus Ferrule

Parameter

GZ Parte nulla.	Series Operatio Pressura (bar/psi)	D1 Tubus o.d.	G1,G2 Metric Thread	L1	L2	S1	D
GZ Parte nulla.	Series Operatio Pressura (bar/psi)	D1 Tubus o.d.	G1,G2 Metric Thread	L1	L2	S1	D
GZ06L	Dominus lux 315 bar 570 psi	6	M12x1.5	33	32	14	2.5
GZ08L		8	M14x1.5	33	32	17	4
GZ10L		10	M16x1.5	34	33	19	6
GZ12L		12	M18x1.5	34	33	22	8
GZ15L		15	M22x1.5	39	38	27	10
GZ18L		18	M26x1.5	38	36	32	13
GZ22L	160 bar 2320 psi	22	M30x2	44	42	36	17
GZ28L		28	M36x2	48	46	41	22
GZ35L		35	M45x2	52	48	50	28
GZ42L		42	M52x2	57	52	60	34
GZ06S	S gravis 630 bar 9135 psi	6	M14x1.5	33	32	17	2.5
GZ08S		8	M16x1.5	34	33	19	4
GZ10S		10	M18x1.5	35	33	22	6
GZ12S		12	M20x1.5	38	36	24	8
GZ14S		14	M22x1.5	41	39	27	9
GZ16S	400 bar 5800 psi	16	M24x1.5	42	39	30	11
GZ20S		20	M30x2	48	44	36	14
GZ25S		25	M36x2	53	46	46	18
GZ30S		30	M42x2	62	52	50	23
GZ38S	315 bar 4570 psi	38	M52x2	67	52	60	30
