Immaculatam Steel Bulkhead Unionis Fittings

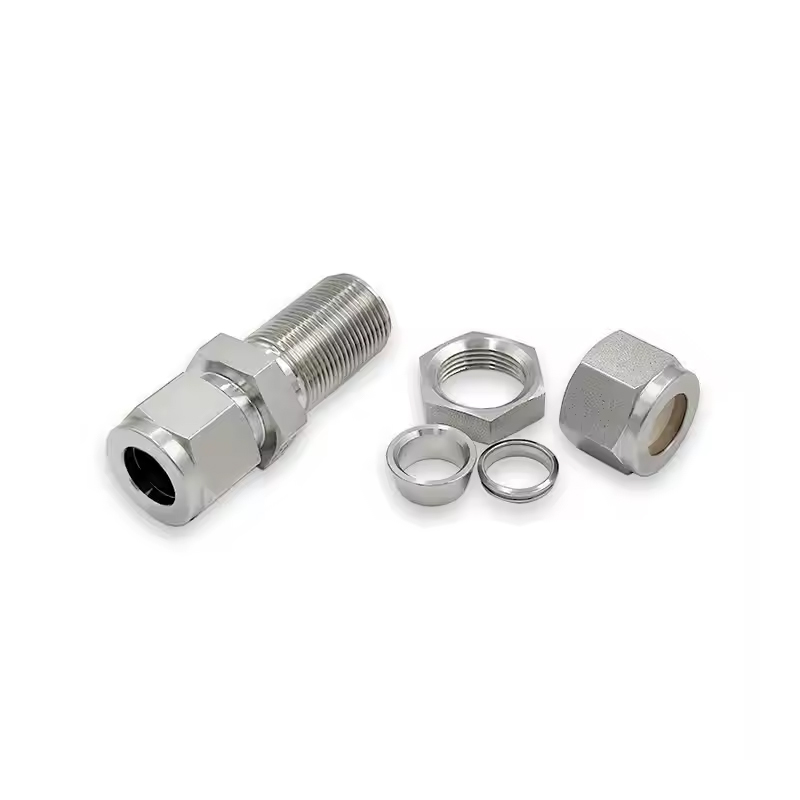

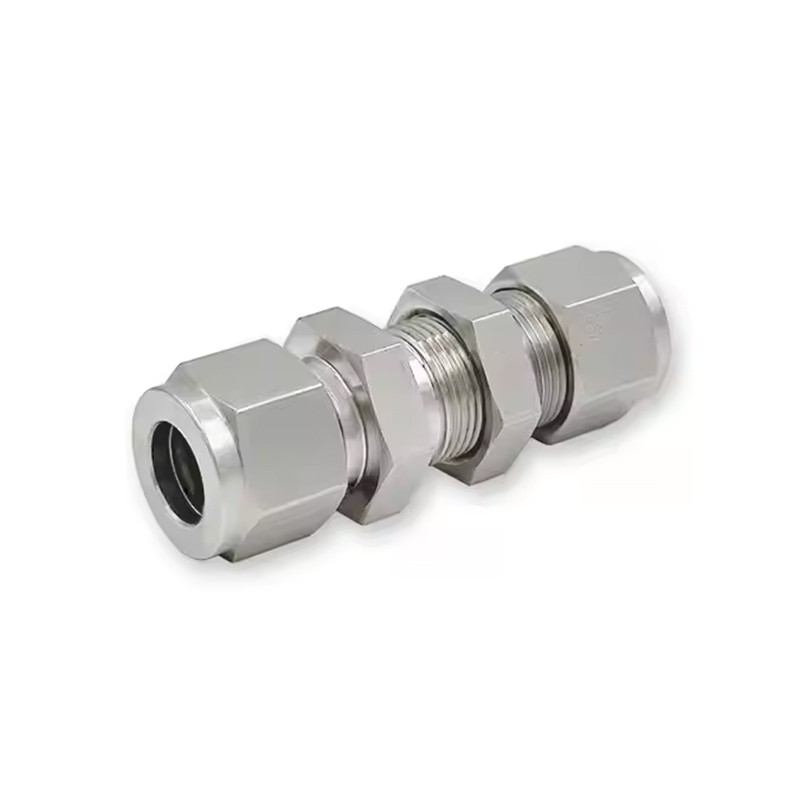

Immaculata Steel Bulkhead Unionis Fittings fabricatur processu falsario utens, quae est methodus formandi materias ferro immaculatas applicando copias compressivas ad figuram desideratam formandam. Haec ars densiorem structuram cum proprietatibus mechanicis melioribus producit, quia grana materialia secundum vim applicatae directionem perpenduntur. Compressionis genus utitur connexionis, quae est una e latissime methodis adhibitis ad constituendas nexus secures, perpluo-probationes in variis applicationibus industriae. In connexione compressione, ferrule in tubum vel tibiam comprimitur, sigillum strictum formans, quo aliqua media diffluere prohibent. Haec mechanismus efficit ut congruus fistulam firmiter in loco teneat, ne quis motus vel disiunctio fiat. Aptationes compressiones faciles sunt instituere et removere quia glutino, solidario vel aliis rationibus implicatis non indigent. Haec simplicitas tempus reducit ad institutionem requisitam.

Contactus Us

PREV: Stainless Steel Double Ferrules Female Fittings DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Typus: Unionis

Originis locus: Jiangsu, China

Nomen notam: SAM-LOK

Connection: Compressio

Structura: unio, cubitus, tee, crux, mole, mas vel femina iungo

Operationis Impetus: 3000- 6000psi

Figura: Aequalis

Caput Code: hexagonum

OD Size: 1/16''-1'',3mm-25mm

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	Basic Ordering Numerus	Dimensio in(mm)						Panel Hole Magnitudo in. (mm)	Max.Panel Crassitudo in. (mm)
T-Tube O.D. (in.)	Basic Ordering Numerus	L	C	E	D	F	G	Panel Hole Magnitudo in. (mm)	Max.Panel Crassitudo in. (mm)
1/16	-BU-FT1	1.24(31.5)	0.34(8.6)	0.05(1.3)	0.31(7.9)	0.31(7.9)	0.31(7.9)	0.20(5.2)	0.12(3.0)
1/8	-BU-FT2	2.02(51.3)	0.50(12.7)	0.09(2.3)	0.44(11.1)	0.50(12.7)	0.50(12.7)	0.33(8.3)	0.50(12.7)
3/16	-BU-FT3	2.11(53.6)	0.54(13.7)	0.12(3.0)	0.50(12.7)	0.56(14.3)	0.56(14.3)	0.39(9.9)	0.50(12.7)
1/4	-BU-FT4	2.27(57.7)	0.60(15.2)	0.19(4.8)	0.56(14.3)	0.63(15.9)	0.63(15.9)	0.45 (11.5)	0.40(10.2)
5/16	-BU-FT5	2.39(60.7)	0.64(16.3)	0.25(6.4)	0.63(15.9)	0.69(17.5)	0.69(17.5)	0.52(13.1)	0.44(11.2)
3/8	-BU-FT6	2.45(62.2)	0.66(16.8)	0.28(7.1)	0.69(17.5)	0.75(19.1)	0.75(19.1)	0.58(14.7)	0.44(11.2)
1/2	-BU-FT8	2.80(71.1)	0.90(22.9)	0.41(10.4)	0.87(22.2)	0.94(23.8)	0.94(23.8)	0.76(19.4)	0.50(12.7)
5/8	-BU-FT10	2.86(72.6)	0.96(24.4)	0.50(12.7)	1.00(25.4)	1.06(27.0)	1.06(27.0)	0.89(22.6)	0.50(12.7)
3/4	-BU-FT12	3.11(79.0)	0.96(24.4)	0.62(15.7)	1.13(28.6)	1.19(30.2)	1.19(30.2)	1.02(25.8)	0.66(16.8)
7/8	-BU-FT14	3.33(84.6)	1.02(25.9)	0.72 (18.3)	1.25(31.8)	1.31(33.3)	1.37(34.9)	1.14(29.0)	0.75(19.1)
1	-BU-FT16	3.77(95.8)	1.23(31.2)	0.88(22.4)	1.50(38.1)	1.63(41.3)	1.63(41.3)	1.33(33.7)	0.75(19.1)
11/4	-BU-FT20	4.85 (123.2)	1.62(41.1)	1.09(27.8)	1.87(47.6)	1.87(47.6)	1.87(47.6)	1.64(41.7)	0.75(19.1)
11/2	-BU-FT24	5.48 (139.2)	1.97(50.0)	1.34(34.0)	2.25(57.2)	2.25(57.2)	2.25(57.2)	1.95(49.6)	0.75(19.1)

T-Tube O.D. (mm)	Basic Ordering Numerus	Dimensio mm(in)						Panel Size in. (mm)	Max.Panel Crassitudo in. (mm)
T-Tube O.D. (mm)	Basic Ordering Numerus	L	C	E	D	F	G	Panel Size in. (mm)	Max.Panel Crassitudo in. (mm)
3	-BU-MT3	51.3 (2.02)	12.9(0.51)	2.4(0.09)	12.0(0.47)	14.0(0.55)	14.0(0.55)	8.3(0.33)	12.7(0.50)
4	-BU-MT4	53.6 (2.11)	13.7(0.54)	2.4(0.09)	12.0(0.47)	14.0(0.55)	14.0(0.55)	9.9(0.39)	12.7(0.50)
6	-BU-MT6	57.7 (2.27)	15.3(0.60)	4.8(0.19)	14.0(0.55)	16.0(0.63)	16.0(0.63)	11.5(0.45)	10.2(0.40)
8	-BU-MT8	61.0(2.40)	16.2(0.64)	6.4(0.25)	16.0(0.63)	18.0(0.71)	18.0(0.71)	13.1(0.52)	11.2(0.44)
10	-BU-MT10	63.7 (2.51)	17.2(0.68)	7.9(0.31)	19.0(0.75)	22.0(0.87)	22.0(0.87)	16.3(0.64)	11.2(0.44)
12	-BU-MT12	71.0(2.80)	22.8(0.90)	9.5(0.37)	22.0(0.87)	24.0(0.94)	24.0(0.94)	19.5(0.77)	12.7(0.50)
14	-BU-MT14	72.5 (2.85)	24.4(0.96)	11.1(0.44)	25.0(0.98)	27.0 (1.06)	27.0 (1.06)	22.5(0.89)	12.7(0.50)
15	-BU-MT15	72.5 (2.85)	24.4(0.96)	11.9(0.47)	25.0(0.98)	27.0 (1.06)	27.0 (1.06)	22.8(0.90)	12.7(0.50)
16	-BU-MT16	72.5 (2.85)	24.4(0.96)	12.7(0.50)	25.0(0.98)	27.0 (1.06)	27.0 (1.06)	22.8(0.90)	12.7(0.50)
18	-BU-MT18	78.9 (3.11)	24.4(0.96)	15.1(0.59)	30.0(1.18)	30.0(1.18)	30.0(1.18)	26.0 (1.02)	16.8(0.66)
20	-BU-MT20	84.5 (3.33)	26.0 (1.02)	15.9(0.63)	32.0 (1.26)	35.0 (1.38)	350 (1.38)	29.0(1.14)	19.0(0.75)
25	-BU-MT25	96.0 (3.78)	31.3(1.23)	21.8(0.86)	38.0 (1.50)	41.0 (1.61)	41.0 (1.61)	34.0 (1.34)	19.0(0.75)
30	-BU-MT30	124.0(4.88)	39.6 (1.56)	26.2 (1.03)	50.0(1.97)	50.0(1.97)	50.0(1.97)	40.5 (1.59)	19.0(0.75)
32	-BU-MT32	128.0 (5.04)	42.0 (1.65)	28.6(1.13)	50.0(1.97)	50.0(1.97)	50.0(1.97)	42.5 (1.67)	19.0(0.75)
38	-BU-MT38	145.0(5.71)	49.4 (1.94)	33.7 (1.33)	60.0(2.36)	60.0(2.36)	60.0(2.36)	50.5 (1.99)	19.0(0.75)
