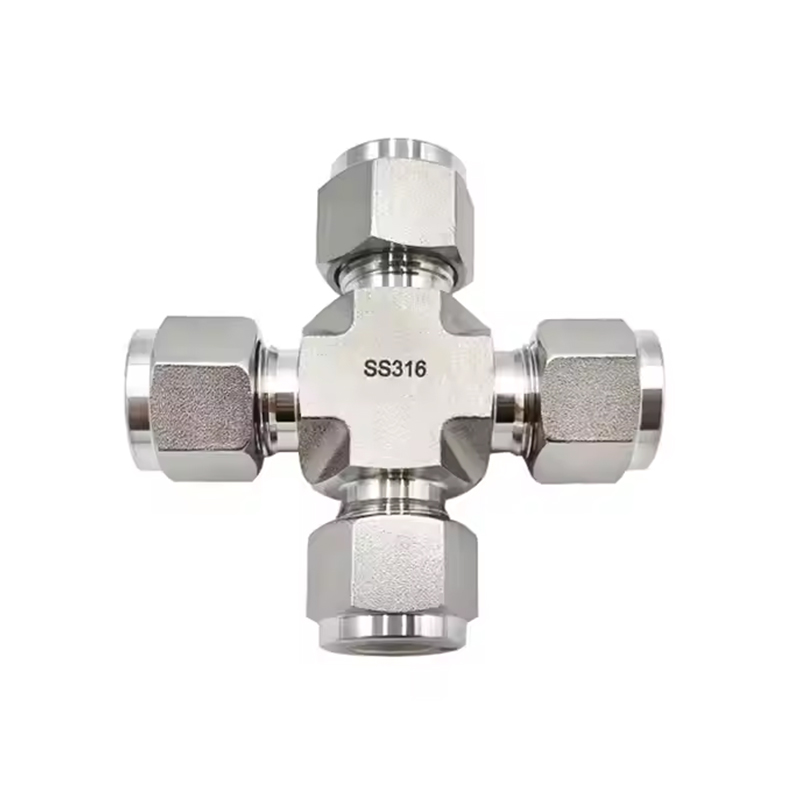

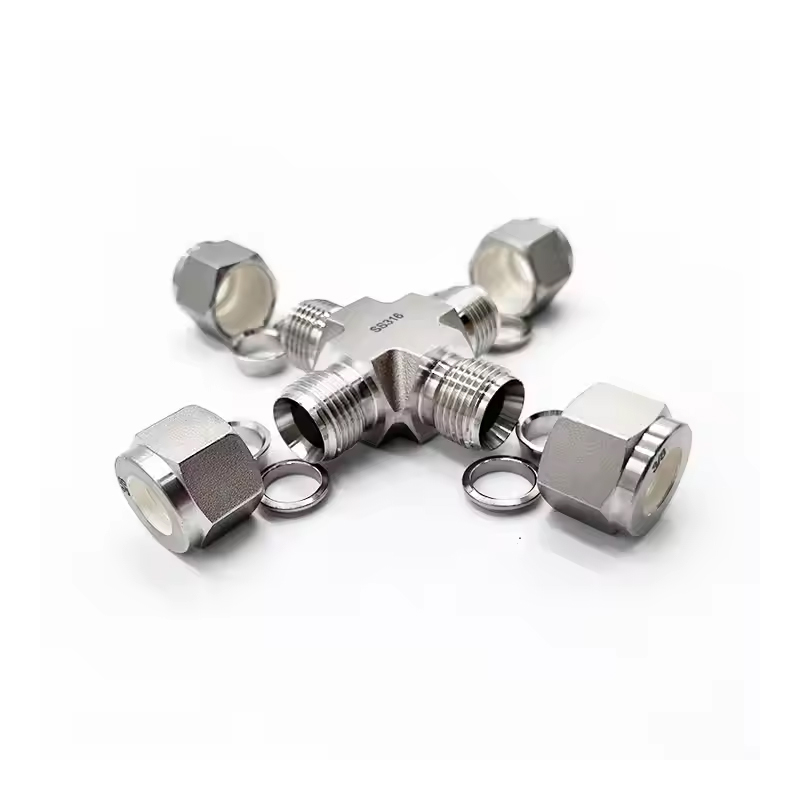

Diver Cross Unionis Cogo Tube Fittings

Fisbus aptus est summus perficientur fistulam immaculatam Steel Cross Unionis technologiae praecisione fabricari decet. Disposita est postulare fluidum industrialem, gas, chemicum media et alia systemata pipeline. Haec fistula decens egregium habet obsignationem observantiae et pressionis altae resistentiae, variis ambitibus duris laborantibus aptam. Oritur a fictis technologia, quae efficaciter augere potest robur, duritiem et diuturnitatem instrumentorum organorum. Comparata cum processu dejectione, structura interna fabricatae organi fistulae densius est et melius resistere potest impressioni externorum factorum, ut concussio mechanica, vibratio, lassitudo, etc. Crux tibiae ratio congruens permittit multiplex nexus puncta in systemate pipeline formari. Tibia crux informata congruens potest percipere fluidum distributionem in plures directiones, simplicem extensionem pipelineam, numerum instrumentorum fistularum reducere, per spatium salvificum et deminutionem gratuita.

Contactus Us

PREV: Steel Double Ferrules Male Fittings DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Technicae: Forged

Typus: Crucis

Originis locus: Jiangsu, Sina (continens)

Nomen notam: SAM-LOK

Connection: duplex ferrule

Caput Code: Hexagon

OD Size: 1/16''-1'',3mm-25mm

Opus Pressura: ad 6000psi

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Curatio tubus: plene annealed

Interiorem Cone: Speculum tincidunt processus

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	Praecipua Ordinatio Numerus	Dimensio, in. (mm)
T-Tube O.D. (in.)	Praecipua Ordinatio Numerus	L	C	D	F	E
1/8	-UC-FT2	0.88(22.4)	0.50(12.7)	0.44(11.1)	0.37(9.5)	0.09(2.3)
3/16	-UC-FT3	0.96(24.4)	0.54(13.7)	0.50(12.7)	0.44(11.1)	0.12(3.0)
1/4	-UC-FT4	1.06(26.9)	0.60(15.2)	0.56(14.3)	0.50(12.7)	0.19(4.8)
5/16	-UC-FT5	1.17(29.7)	0.64(16.2)	0.63(15.9)	0.63(15.9)	0.25(6.4)
3/8	-UC-FT6	1.20(30.5)	0.66(16.8)	0.69(17.5)	0.63(159)	0.28(7.1)
1/2	-UC-FT8	1.42(36.1)	0.90(22.9)	0.69(17.5)	0.81(20.6)	0.41(10.4)
5/8	-UCFT10	1.43(36.3)	0.96(24.4)	1.00(25.4)	1.06(27.0)	0.50(12.7)
3/4	-UCFT12	1.57(39.9)	0.96(24.4)	1.13(28.6)	1.06(27.0)	0.62(15.7)
7/8	-UCFT14	1.76(44.7)	1.02(25.9)	1.25(31.8)	1.37(34.9)	0.72 (18.3)
1	-UC-FT16	1.93(49.0)	1.23(31.2)	1.50(38.1)	1.37(34.9)	0.88(22.4)

T-Tube 0.D. (mm)	BasicOrdering Numerus	Dimensio, mm.
T-Tube 0.D. (mm)	BasicOrdering Numerus	L	C	D	F	E
3	-UC-MT3	22.3(0.88)	12.9(0.51)	12.0(0.47)	9.5(0.37)	2.4(0.09)
4	-UC-MT4	25.4 (1.00)	13.7(0.54)	12.0(0.47)	12.7(0.50)	2.4(0.09)
6	-UC-MT6	27.0 (1.06)	15.3(0.60)	14.0(0.55)	12.7(0.50)	4.8(0.19)
8	-UC-MT8	29.9(1.18)	16.2(0.64)	16.0(0.63)	15.9(0.63)	6.4(0.25)
10	-UC-MT10	33.5 (1.32)	17.2(0.68)	19.0(0.75)	20.6(0.81)	7.9(0.31)
12	-UC-MT12	36.0 (1.42)	22.8(0.90)	22.0(0.87)	20.6(0.81)	9.5(0.37)
16	-UC-MT16	3Z0 (1.46)	24.4(0.96)	25.0(098)	23.8(0.94)	12.7(0.50)
18	-UC-MT18	38.3 (1.51)	24.4(0.96)	30.0(1.18)	27.0 (1.06)	15.1(0.59)
20	-UC-MT20	44.6 (1.76)	26.0 (1.02)	32.0 (1.26)	34.9 (1.37)	15.9(0.63)
22	-UC-MT22	44.7 (1.76)	26.0 (1.02)	32.0 (1.26)	34.9 (1.37)	18.3(0.72)
25	-UC-MT25	49.2 (1.94)	31.3(1.23)	38.0 (1.50)	34.9 (1.37)	21.8(0.86)

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Diver Cross Unionis Cogo Tube Fittings Manufacturers and Diver Cross Unionis Cogo Tube Fittings Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.
