Vincula Conpressio Tube Diver Cubiculum Unionis

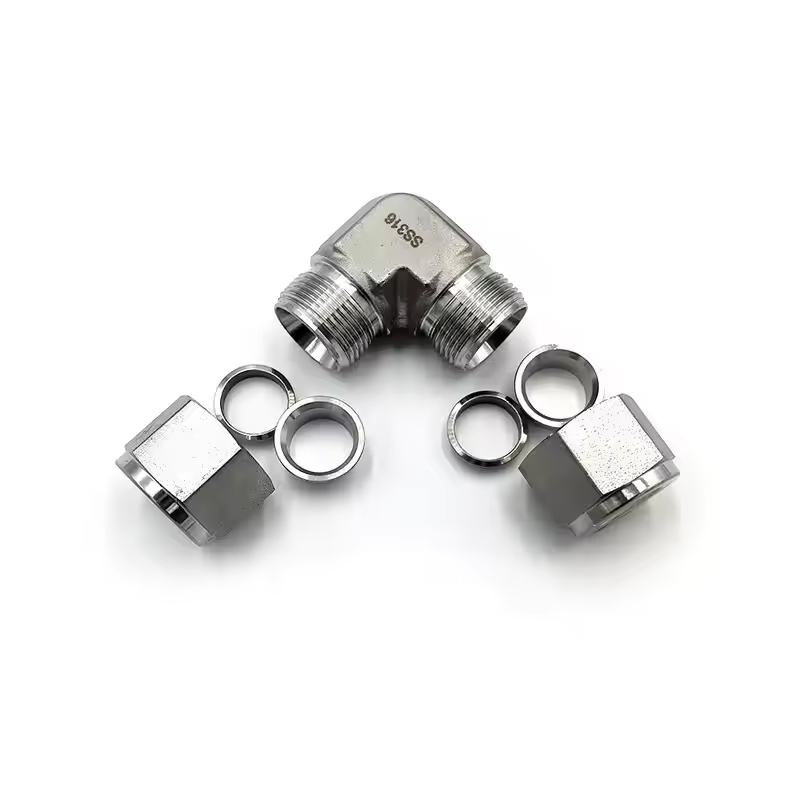

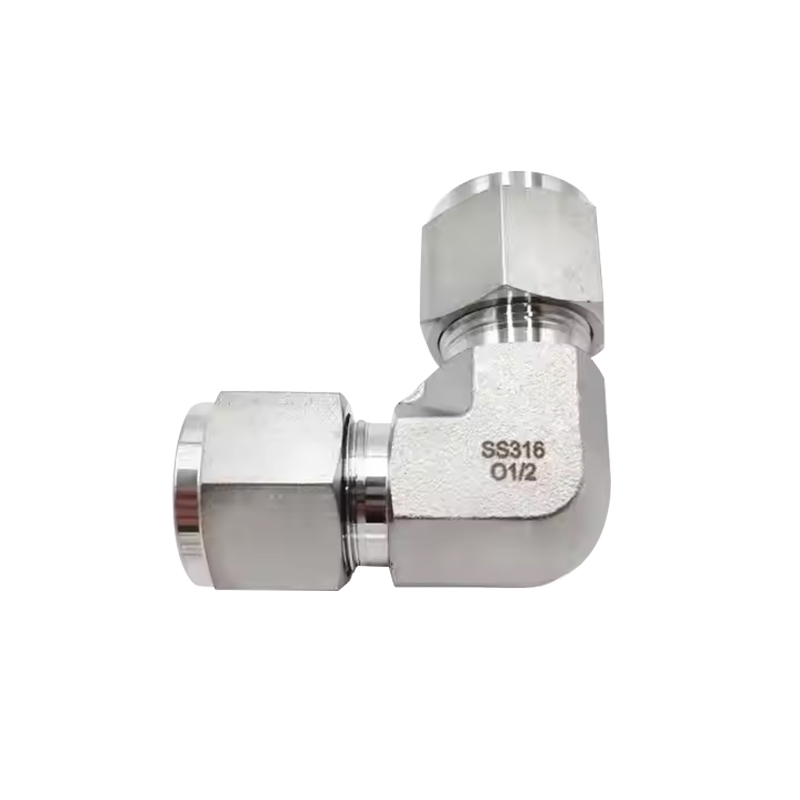

Tube Fittings Cogo Unionis Immaculatae Ferri Cubitus 90 gradus cubiti usus est ad duos angulos rectos connectere, inconsutilem et strictum nexum praebens. Haec conformatio applicationibus apta est in quibus spatium restrictiones vel fistulae specificae propositiones mutationem exigunt in directione fistulae systematis. Hoc congruens designatus est cubiti diametri constans, quae significat duas fistulas ejusdem diametri connectere, ut cursus in systemate constans et continuus maneat. Constans diametri cubiti ratio maxime utilis est, cum duas sectiones fistulae eiusdem quantitatis coniungens, constanter dynamicas fluentes servans et turbulentum minuens quae inefficientiae causare vel super tempus terere possunt. Figura est hexagonalis, quae facile est instituere et obstringere. Figura hexagonalis instrumentorum tenacitatem securam praebet, ita ut apta ratio a organo organo sine lapsus vel difficultate facile institui vel removeri possit. Caput hexagonale etiam efficit ut congrui torquibus altioribus sine noxa sustinere possint, ita adiuvantes ut altiorem diuturnitatem et firmitatem systematis emendare possint..

Contactus Us

PREV: Stainless Steel Tee Union Compressionis Tube Fittings DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Typus: Cubitus

Originis locus: Jiangsu, Sina (continens)

Exemplar Number: Aequalis Cubitus Fitting

Nomen notam: SAM-LOK

Connection: Duplex Ferrules

Figura: Aequalis

Caput Code: Hexagon

material: 304, 316, 304L, 316L etc

Altera servitium: praesto

structure: 90 cubiti gradus

Parameter

T-Tube O.D. (in.)	Basic Ordering Numerus	Dimensio in (m* m)
T-Tube O.D. (in.)	Basic Ordering Numerus	L	C	D	F	E
1/16	-UE-FT1	0.70(17.8)	0.34(8.6)	0.31(7.9)	0.37(9.5)	0.05(1.3)
1/8	-UE-FT2	0.88(22.4)	0.50(12.7)	0.44(11.1)	0.37(9.5)	0.09(2.3)
3/16	-UE-FT3	1.00(25.4)	0.54(13.7)	0.50(12.7)	0.50(12.7)	0.12(3.0)
1/4	-UE-FT4	1.06(26.9)	0.60(15.2)	0.56(14.3)	0.50(12.7)	0.19(4.8)
5/16	-UE-FT5	1.13(28.7)	0.64(16.3)	0.63(15.9)	0.56(14.3)	0.25(6.4)
3/8	-UE-FT6	1.20(30.5)	0.66(16.8)	0.69(17.5)	0.63(15.9)	0.28(7.1)
1/2	-UE-FT8	1.42(36.1)	0.90(22.9)	0.87(22.2)	0.81(20.6)	0.41(10.4)
5/8	-UE-FT10	1.50(38.1)	0.96(24.4)	1.00(25.4)	0.94(23.8)	0.5(12.7)
3/4	-UE-FT12	1.57(39.9)	0.96(24.4)	1.13(28.6)	1.06(27.0)	0.62(15.7)
7/8	-UE-FT14	1.76(44.7)	1.02(25.9)	1.25(31.8)	1.37(34.9)	0.72 (18.3)
1	-UE-FT16	1.93(49.0)	1.23(31.2)	1.50(38.1)	1.37(34.9)	0.88(22.4)
11/8	-UE-FT18	2.17(55.1)	1.23(31.2)	1.63(41.3)	1.69(42.9)	0.97(24.6)
11/4	-UE-FT20	2.62(66.5)	1.62(41.1)	1.87(47.6)	1.69(42.9)	1.09(27.7)
11/2	-UE-FT24	3.07(78.0)	1.97(50.0)	2.25(57.2)	2.00(50.8)	1.34(34.0)

T-Tube O.D. (mm)	Praecipua Ordinatio Numerus	Dimensio, mm.
T-Tube O.D. (mm)	Praecipua Ordinatio Numerus	L	C	D	F	E
3	-UE-MT3	22.3(0.88)	12.9(0.51)	12.0(0.47)	9.5(0.37)	2.4(0.09)
4	-UE-MT4	25.4 (1.00)	13.7(0.54)	12.0(0.47)	12.7(0.50)	2.4(0.09)
6	-UE-MT6	27.0 (1.06)	15.3(0.60)	14.0(0.55)	12.7(0.50)	4.8(0.19)
8	-UE-MT8	28.8(1.13)	16.2(0.64)	16.0(0.63)	14.3(0.56)	6.4(0.25)
10	-UE-MT10	31.5 (1.24)	17.2(0.68)	19.0(0.75)	17.5(0.69)	7.9(0.31)
12	-UE-MT12	36.0 (1.42)	22.8(0.90)	22.0(0.87)	20.6(0.81)	9.5(0.37)
14	-UE-MT14	38.0 (1.50)	24.4(096)	25.0(0.98)	23.8(0.94)	11.0(0.43)
15	-UE-MT15	38.8 (1.53)	24.4(096)	25.0(0.98)	23.8(0.94)	11.9(0.47)
16	-UE-MT16	38.0 (1.50)	24.4(096)	25.0(0.98)	23.8(0.94)	12.7(0.50)
18	-UE-MT18	39.8 (1.57)	24.4(0.96)	30.0(1.18)	27.0 (1.06)	15.1(0.59)
20	-UE-MT20	44.6 (1.76)	26.0 (1.02)	32.0 (1.26)	34.9 (1.37)	15.9(0.63)
22	-UE-MT22	44.6 (1.76)	26.0 (1.02)	32.0 (1.26)	34.9 (1.37)	18.3(0.72)
25	-UE-MT25	49.1 (1.93)	31.3(1.23)	38.0(1.5)	34.9 (1.37)	21.8(086)
28	-UE-MT28	64.0(2.52)	36.6 (1.44)	46.0 (1.81)	42.9 (1.69)	21.8(086)
30	-UE-MT30	69.9(275)	39.6 (1.56)	50.0(1.97)	42.9 (1.69)	26.2 (1.03)
32	-UE-MT32	72.3 (2.85)	42.0 (1.65)	50.0(1.97)	42.9 (1.69)	28.6(1.13)
38	-UE-MT38	84.0 (3.31)	49.4 (1.94)	60.0(2.36)	50.8 (2.00)	33.7 (1.33)
