Stainless Steel Tee Union Compressionis Tube Fittings

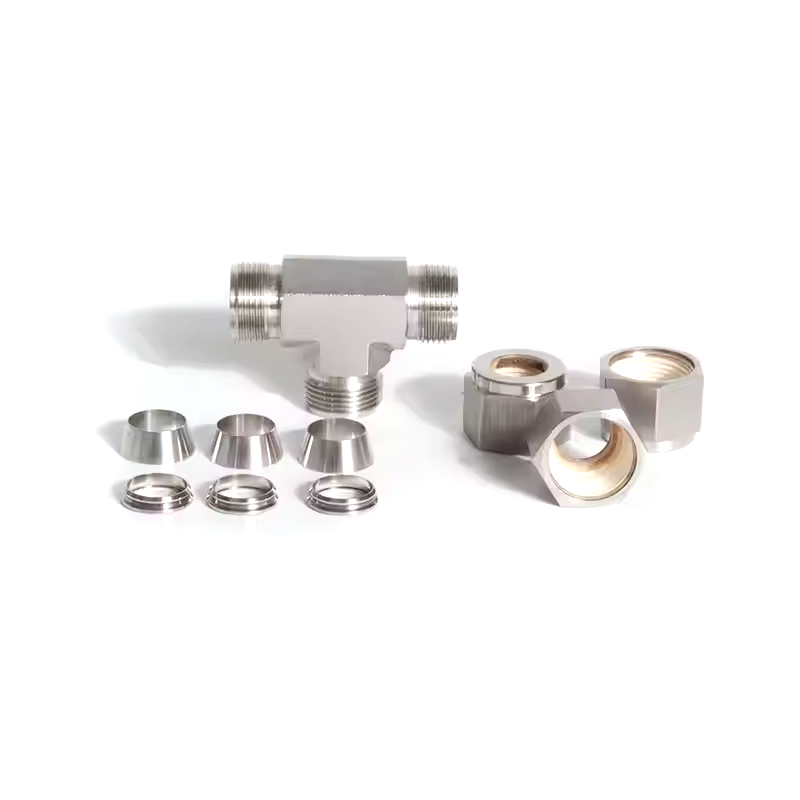

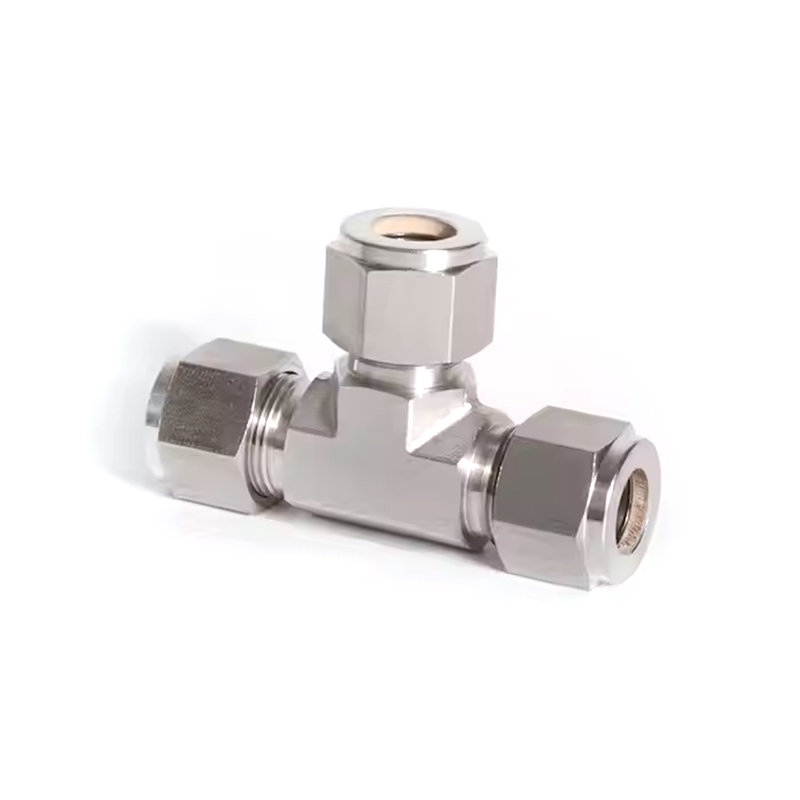

Chalybe immaculata Tee Tube Fittings Compressionis Unionis tres fistulae ad unum iuncturam connectunt, fluidum vel gas fluxum redirecti permittens. Appositiones Tee in multis systematibus essentiales sunt, ut aquariorum systemata, reactoria chemica, et organa transmissionum gasorum naturalium, ubi necesse est fluxum vel nexus in plures directiones dividere. Consilium figurae Tee efficit ut liquor fluxus aequilibratus remaneat et systema integritatem cogente conservat. Hoc congruens habet diametrum exteriorem (OD) vndique ab 1/16'' usque ad 1'' (3 mm ad 25 mm), quae versatile et magnis systematibus parvis et aptum est. Amplis amplis moles cum variis quantitatum organis compatitur, ut opportunum sit inconsutilis in varietatem fluidi vel gasi traditio integrari. Designatur ad impressiones laborantes usque ad 6000 psi tractare. Etiam in magna pressura, congruus suam integritatem et signationem conservare potest, salvam et efficacem operationem procurans. Summus pressurae rating etiam permittunt utendum in systematibus hydraulicis et in systematibus purgandis alta pressura.

Contactus Us

PREV: Diver Cross Unionis Cogo Tube Fittings DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Technicae: Forged

Typus: Unionis

Originis locus: Jiangsu, Sina (continens)

Exemplar Number: Unionis Opportunus

Nomen notam: SAM-LOK

Connection: duplex ferrule

Figura: Tee

Caput Code: Hexagon

OD Size: 1/16''-1'',3mm-25mm

Opus Pressura: ad 6000psi

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Curatio tubus: plene annealed

Interiorem Cone: Speculum tincidunt processus

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	Basic Ordering Numerus	DIMENSIONE, m. (mm)
T-Tube O.D. (in.)	Basic Ordering Numerus	L	C	D	F	E
1/16	UT-FT1	0.70(17.8)	0.34(8.6)	0.31(7.9)	0.37(9.5)	0.05(1.3)
1/8	-UT-FT2	0.96(24.4)	0.50(12.7)	0.44(11.1)	0.37(9.5)	0.09(2.3)
3/16	-UT-FT3	0.96(24.4)	0.54(13.7)	0.50(12.7)	0.44(11.1)	0.12(3.0)
1/4	-UT-FT4	1.06(26.9)	0.60(15.2)	0.56(14.3)	0.50(12.7)	0.19(4.8)
5/16	-UT-FT5	1.17(29.7)	0.64(16.2)	0.63(15.9)	0.63(15.9)	0.25(6.4)
3/8	-UT-FT6	1.20(30.5)	0.66(16.8)	0.69(17.5)	0.63(15.9)	0.28(7.1)
1/2	-UT-FT8	1.42(36.1)	0.90(22.9)	0.87(22.2)	0.81(20.6)	0.41(10.4)
5/8	-UT-FT10	1.53(38.9)	0.96(24.4)	1.00(25.4)	1.00(25.4)	0.50(12.7)
3/4	-UT-FT12	1.57(39.9)	0.96(24.4)	1.13(28.6)	1.06(27.0)	0.62(15.7)
7/8	-UT-FT14	1.76(44.7)	1.02(25.9)	1.25(31.8)	1.37(34.9)	0.72 (18.3)
1	-UT-FT16	1.93(49.0)	1.23(31.2)	1.50(38.1)	1.37(34.9)	0.88(22.4)
11/8	-UT-FT18	2.17(55.1)	1.23(31.2)	1.81(46.0)	1.69(42.9)	0.97(24.6)
11/4	-UT-FT20	2.62(66.5)	1.62(41.1)	1.87(47.6)	1.69(42.9)	1.09(27.7)
11/2	-UT-FT24	3.07(78.0)	1.97(50.0)	2.25(57.2)	2.00(50.8)	1.34(34.0)

T-Tube O.D. (mm)	Basic Ordering Numerus	Dimensio, mm.
T-Tube O.D. (mm)	Basic Ordering Numerus	L	C	D	F	E
2	-UT-MT2	22.3(0.88)	12.9(0.51)	12.0(0.47)	9.5(0.37)	1.7(0.07)
3	-UT-MT3	22.3(088)	12.9(0.51)	12.0(0.47)	9.5(0.37)	2.4(0.09)
4	-UT-MT4	25.4 (1.00)	13.7(0.54)	12.0(0.47)	12.7(0.50)	2.4(0.09)
6	-UT-MT6	27.0 (1.06)	15.3(0.60)	14.0(0.55)	12.7(0.50)	4.8(0.19)
8	-UT-MT8	29.9(1.18)	16.2(0.64)	16.0(0.63)	15.9(0.63)	6.4(0.25)
10	-UT-MT10	31.5 (1.24)	17.2(0.68)	19.0(0.75)	17.5(0.69)	7.9(0.31)
12	-UT-MT12	36.0 (1.42)	22.8(0.90)	22.0(0.87)	20.6(0.81)	9.5(0.37)
14	-UT-MT14	38.8 (1.53)	24.4(096)	25.0(098)	25.4 (1.00)	11.1(0.44)
15	-UT-MT15	38.8 (1.53)	24.4(096)	25.0(0.98)	25.4 (1.00)	11.9(0.47)
16	-UT-MT16	38.8 (1.53)	24.4(096)	25.0(098)	25.4 (1.00)	12.7(0.50)
18	-UT-MT18	38.8 (1.53)	24.4(0.96)	30.0(1.18)	27.0 (1.06)	15.1(0.59)
20	-UT-MT20	44.6 (1.76)	26.0 (1.02)	32.0 (1.26)	34.9 (1.37)	15.9(0.63)
22	-UT-MT22	44.6 (1.76)	26.0 (1.02)	32.0 (1.26)	34.9 (1.37)	18.3(0.72)
25	-UT-MT25	49.1 (1.93)	31.3(1.23)	38.0 (1.50)	34.9 (1.37)	21.8(0.86)
28	-UT-MT28	64.0(2.52)	36.6 (1.44)	46.0 (1.81)	42.9 (1.69)	21.8(086)
30	-UT-MT30	69.9 (2.75)	39.6 (1.56)	50.0(1.97)	42.9 (1.69)	26.2 (1.03)
32	-UT-MT32	72.3 (2.85)	42.0 (1.65)	50.0(1.97)	42.9 (1.69)	28.6(1.13)
38	-UT-MT38	84.0 (3.31)	49.4 (1.94)	60.0(2.36)	50.8 (2.00)	33.7 (1.33)
