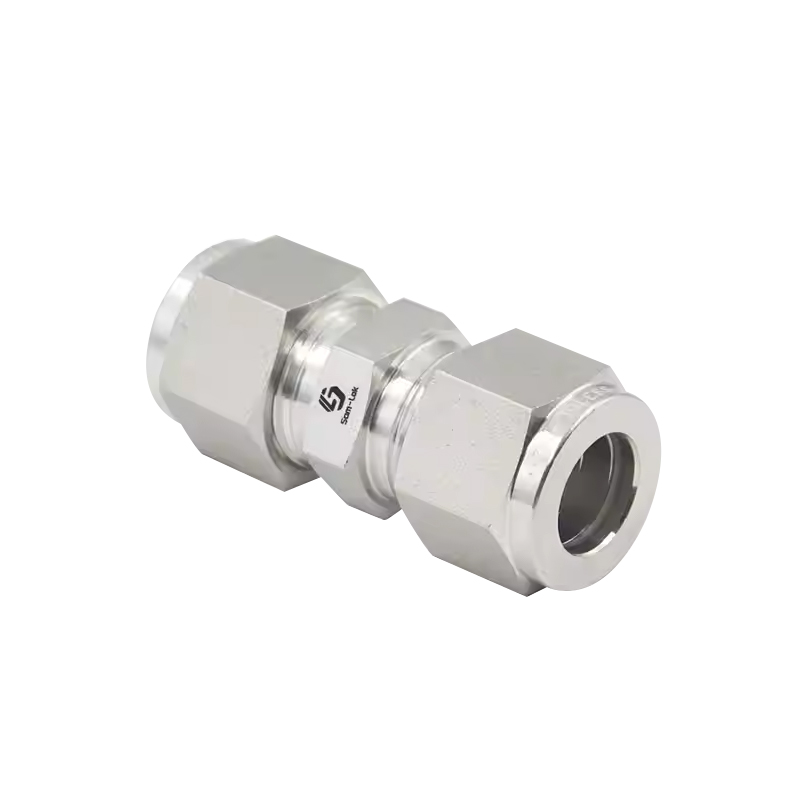

Conpressionem Tube Immaculatam Unionis Ferri Fittings

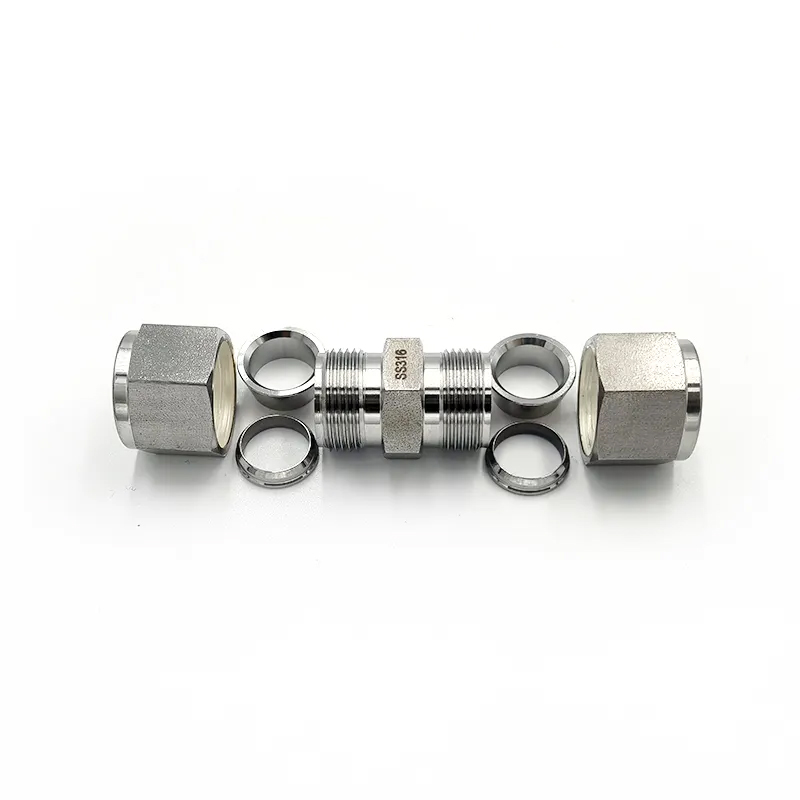

Diver Unionis Immaculatae Compressionis Tube Fittings fiunt summus gradus sine ferro. Materia immaculata ferrum altiorem diuturnitatem meliorem facit, longam vitam adiuvat ac necessitatem minuit ad frequentem sustentationem vel subrogationem. Processum fictum adoptat. Hic processus optimam vim et subtilitatem efficit. Caerimoniae fictae ordinantur ad altas pressuras et graves condiciones sine ullo discrimine perficiendi sustinere. Hoc congruum est genus unionis, quod significat quod ordinantur ad fistulas vel fistulas facile connectere et disiungi sine magna instrumenta vel disassembly. Consilium Unionis permittit ut modificationes systematis sustentationis efficientes sine sectione fistulae integrae tollatur. Duplex nexus ferrulei designatus validum, libero libero sigillum ne liquidum vel lacus gasi vel sub alta pressione condiciones. Ferrule inter nucem et corpus conveniens arcte coagmentatur, praestantem tenacitatem ac stabilitatem praebens ne misalignment et nexum artum conservet.

Contactus Us

PREV: Vincula Conpressio Tube Diver Cubiculum Unionis DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Typus: Unionis

Originis locus: Jiangsu, Sina (continens)

Exemplar Number: Unionis Opportunus

Nomen notam: SAM-LOK

Connection: duplex ferrule

Figura: Aequalis

Caput Code: Hexagon

OD Size: 1/16''-1'',3mm-25mm

Opus Pressura: ad 6000psi

Medium: aqua, oleum, gas, acidum, basi et cetera

Specialis curatio: ferrule duritia curatio

Nux Curatio: argentum plantatum

Curatio tubus: plene annealed

Interiorem Cone: Speculum tincidunt processus

Temperature laborantis: -20 ad 200 gradum celsius

Parameter

T-Tube O.D. (in.)	Praecipua Ordinatio Numerus	Dimensio in(mm）
T-Tube O.D. (in.)	Praecipua Ordinatio Numerus	L	C	D	F	E
1/16	-TU-FT1	0.99(25.1)	0.34(8.6)	0.31(7.9)	0.44(11.1)	0.05(1.3)
1/8	-TU-FT2	1.40(35.6)	0.50(12.7)	0.44(11.1)	0.44(11.1)	0.09(2.3)
3/16	-TU-FT3	1.47(37.3)	0.54(13.7)	0.50(12.7)	0.50(12.7)	0.12(3.0)
1/4	-TU-FT4	1.61(40.9)	0.60(15.2)	0.56(14.3)	0.50(12.7)	0.19(4.8)
5/16	-TU-FT5	1.69(42.9)	0.64(16.2)	0.63(15.9)	0.56(14.3)	0.25(6.4)
3/8	-TU-FT6	1.77(45.0)	0.66(16.8)	0.69(17.5)	0.63(15.9)	0.28(7.1)
1/2	-TU-FT8	2.02(51.3)	0.90(22.9)	0.87(22.2)	0.81(20.6)	0.41(10.4)
5/8	-TU-FT10	2.05(52.1)	0.96(24.4)	1.00(25.4)	0.94(23.9)	0.50(12.7)
3/4	-TU-FT12	2.11(53.6)	0.96(24.4)	1.13(28.6)	1.06(27.0)	0.62(15.7)
7/8	-TU-FT14	2.17(55.1)	1.02(25.9)	1.25(31.8)	1.37(34.9)	0.72 (18.3)
1	-TU-FT16	2.55(64.8)	1.23(31.2)	1.5(38.1)	1.37(34.9)	0.88(22.4)
11/8	-TU-FT18	2.55(64.8)	1.23(31.2)	1.75(44.5)	1.63(41.3)	0.97(24.6)
11/4	-TU-FT20	3.63(92.2)	1.62(41.1)	1.87(47.6)	1.75(44.5)	1.09(27.7)
11/2	-TU-FT24	4.25 (108.0)	1.97(50.0)	2.25(57.2)	2.13(54.0)	1.34(34.0)

T-Tube O.D. (mm)	Basic Ordering Numerus	Dimensio, mm.
T-Tube O.D. (mm)	Basic Ordering Numerus	L	C	D	F	E
2	-TU-MT2	35.6 (140)	12.9(0.51)	12.0(0.47)	12.0(0.47)	1.7(0.07)
3	-TU-MT3	35.3 (1.39)	12.9(0.51)	12.0(0.47)	12.0(0.47)	2.4(0.09)
4	-TU-MT4	37.3 (1.47)	13.7(0.54)	12.0(0.47)	12.0(0.47)	2.4(0.09)
6	-TU-MT6	41.0 (1.61)	15.3(0.60)	14.0(0.55)	14.0(0.55)	4.8(0.19)
8	-TU-MT8	43.2 (1.70)	16.2(0.64)	16.0(0.63)	15.0(0.59)	6.4(0.25)
10	-TU-MT10	46.2 (1.82)	17.2(0.68)	19.0(0.75)	18.0(0.71)	7.9(0.31)
12	-TU-MT12	51.2(2.02)	22.8(0.90)	22.0(0.87)	22.0(0.87)	9.5(0.37)
14	-TU-MT14	52.0(2.05)	24.4(096)	25.0(0.98)	24.0(0.94)	11.1(0.44)
15	-TU-MT15	52.0(2.05)	24.4(0.96)	25.0(0.98)	24.0(0.94)	11.9(0.47)
16	-TU-MT16	52.0(2.05)	24.4(0.96)	25.0(0.98)	24.0(0.94)	12.7(0.50)
18	-TU-MT18	53.5 (2.11)	24.4(0.96)	30.0(1.18)	27.0 (1.06)	15.1(0.59)
20	-TU-MT20	55.0 (2.17)	26.0 (1.02)	32.0 (1.26)	30.0(1.18)	15.9(0.63)
22	-TU-MT22	55.0 (2.17)	26.0 (1.02)	32.0 (1.26)	30.0(1.18)	18.3(0.72)
25	-TU-MT25	65.0 (2.56)	31.3(1.23)	38.0 (1.50)	35.0 (1.38)	21.8(0.86)
28	-TU-MT28	85.0 (3.35)	36.6 (1.44)	46.0 (1.81)	41.0 (1.61)	21.8(0.86)
30	-TU-MT30	92.7 (3.65)	39.6 (1.56)	50.0(1.97)	46.0 (1.81)	26.2 (1.03)
32	-TU-MT32	97.3 (3.83)	42.0 (1.65)	50.0(1.97)	46.0 (1.81)	28.6(1.13)
38	-TU-MT38	113.6 (4.47)	49.4 (1.94)	60.0(2.36)	55.0 (2.17)	33.7 (1.33)
