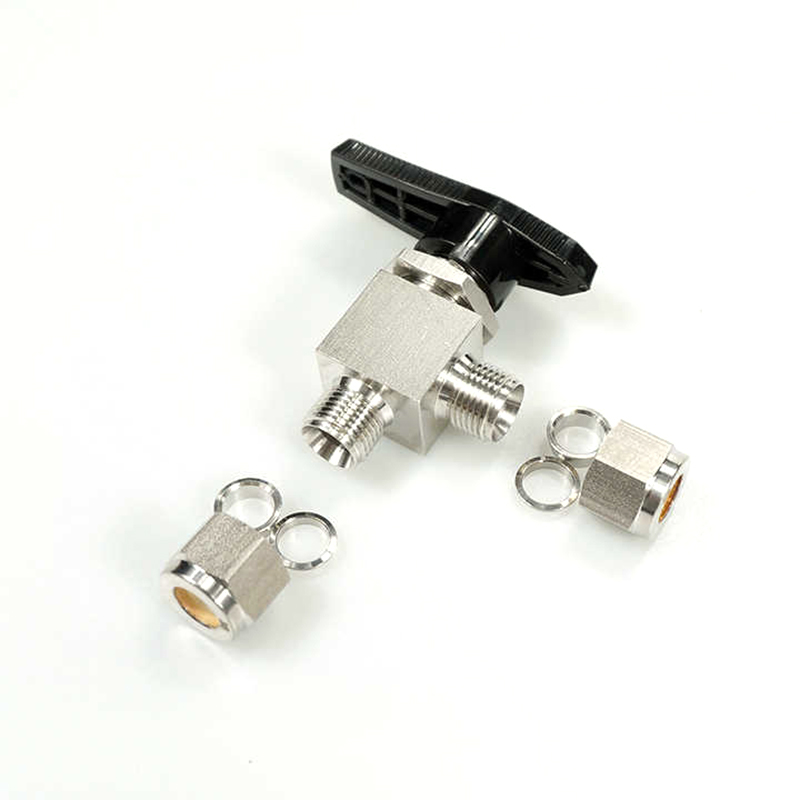

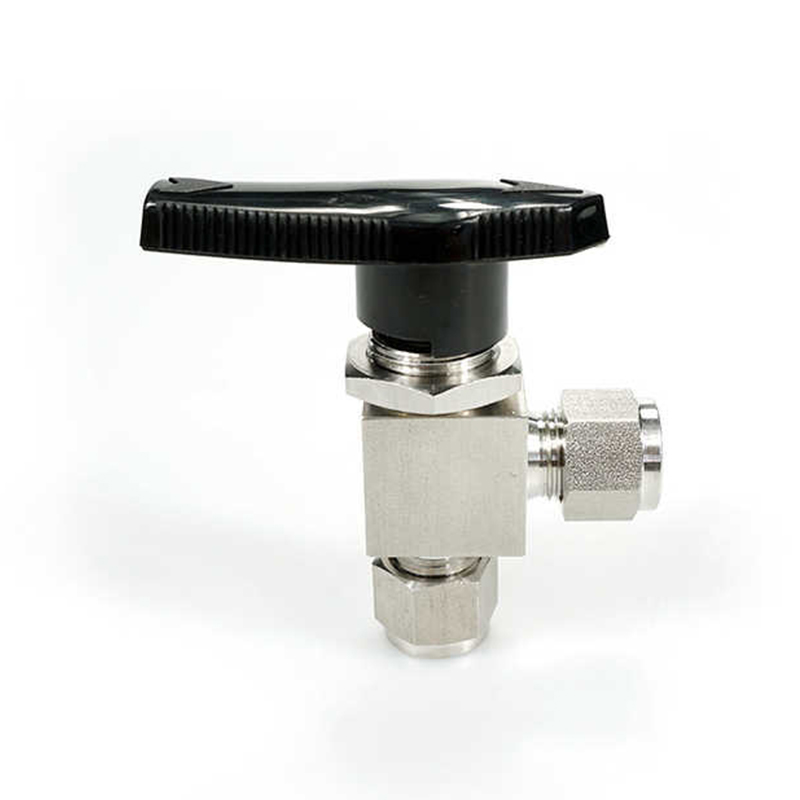

Steel Duplex Ferrule 90 Degree Angle Ball Valve

Steel Duplex Ferrule 90 Gradus Anglus Valvae Ball Valvae designatus est ut maximam vim laborantis 3000 PSIG (CCVII vectis sustineat), operationem stabilem sub praealtis pressionibus ambitibus obtinet. Hoc consilium aptissimum est ad pipelines altae pressurae, transmissionis liquidae et systemata gasi moderandi. Imperium stabilium fluere potest conservare cum contra systematis pressiones fluctuationes sine lacus vel defectu. Singularis summae limbi ratio huius valvae pilae sinit valvae inspici et reparari sine systemate disgregationi. Per hoc porttitor consilium, utentes valvulam ponere possunt sine interpellatione processus productionis, magno apparatu downtime minuendo. In oleo et gasi pipelines, valvae fluxum humorum efficaciter moderari possunt et operationem altae pressurae olei et systematis transmissionis gasi tutandam curare; globulus valvae zonae mortuae consilium habet ad puritatem fluidi in tradenda curanda et apta applicationibus sicut sterilitas, pharmaceutica productio et praecisio temperantiae.

Contactus Us

PREV: Stainless Steel Double Ferrule Three-way Ball Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

●Operans pressionem usque ad: 3000 psig (207 talea)
● temperies operans: -65 °F ad 300 °F (-54 °F ad 148°F)
●Size from 1/16in. ad 3/4in. vel 3mm ad 18mm
Valvae genera recta per tres modo et rectus-angulus
-Una pars valvae corporis et una pars pila hastile
Zonae mortuae nullae, ut area inter pilam et thalamum valvae
Top ostium consilio online inspici et reparari potest postquam ratio removetur

Parameter

Praecipua Ordinatio Numerus	Connection Typus et Size	Orificium in. (mm)	Cv		Dimensio, m. (mm)
			Rectus	Angulus	A	C	D	E	F	H
-OIB-MT3-2	3mm Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.34 (8.6)	0.97 (24.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-MT3-2-3W
-OIB-MT6-5	6mm Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.44 (11.2)	1.29 (32.8)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-MT6-5-3W
-OIB-MT8-5	8mm Tube	0.19 (4.8)	1.40	0.90	2.46 (62.5)	0.44 (11.2)	1.29 (32.8)	1.64 (41.7)	1.64 (41.7)	0.78 (19.8)
-OIB-MT8-5-3W
-OIB-MT10-7	10mm Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	1.43 (36.3)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-MT10-7-3W
-OIB-MT12-10	12mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT12-10-3W
-OIB-MT14-10	14mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 38.1)
-OIB-MT14-10-3W
-OIB-MT18-10	18mm Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT18-10-3W

-OIB-FT2-2-A	1/8"Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.34 (8.6)	0.97 (24.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-FT22-3W
-OIB-FT4-5-A	1/4"Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.44 (11.2)	1.29 (32.8)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-FT4-5-3W
-OIB-FT6-7-A	3/8"Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	1.43 (36.3)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-FT6-7-3W
-OIB-FT8-10-A	1/2"Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT8-10-3W
-OIB-FT12-10-A	3/4 "Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT12-10-3W
