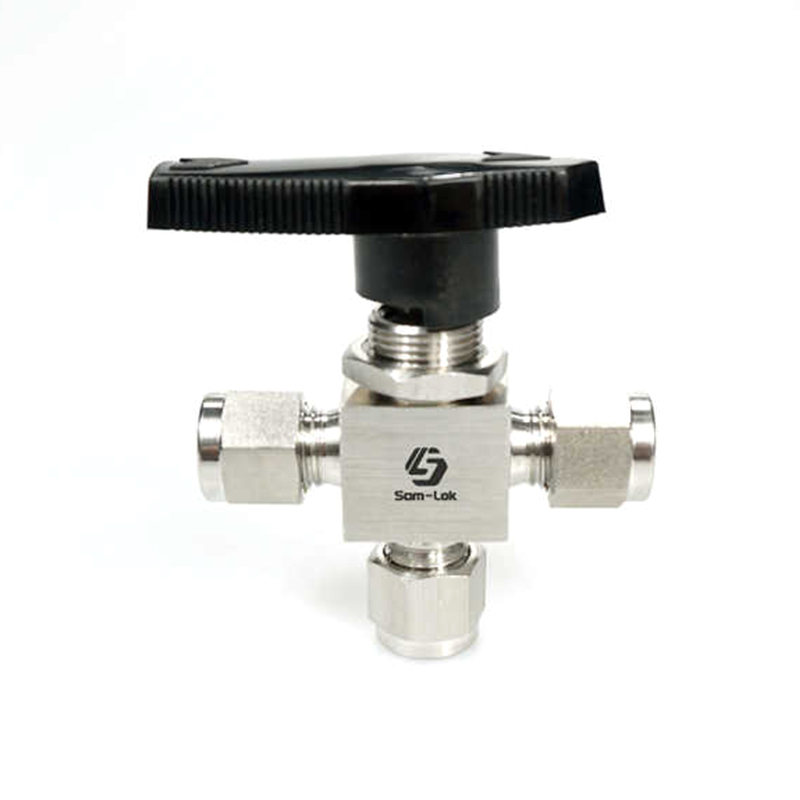

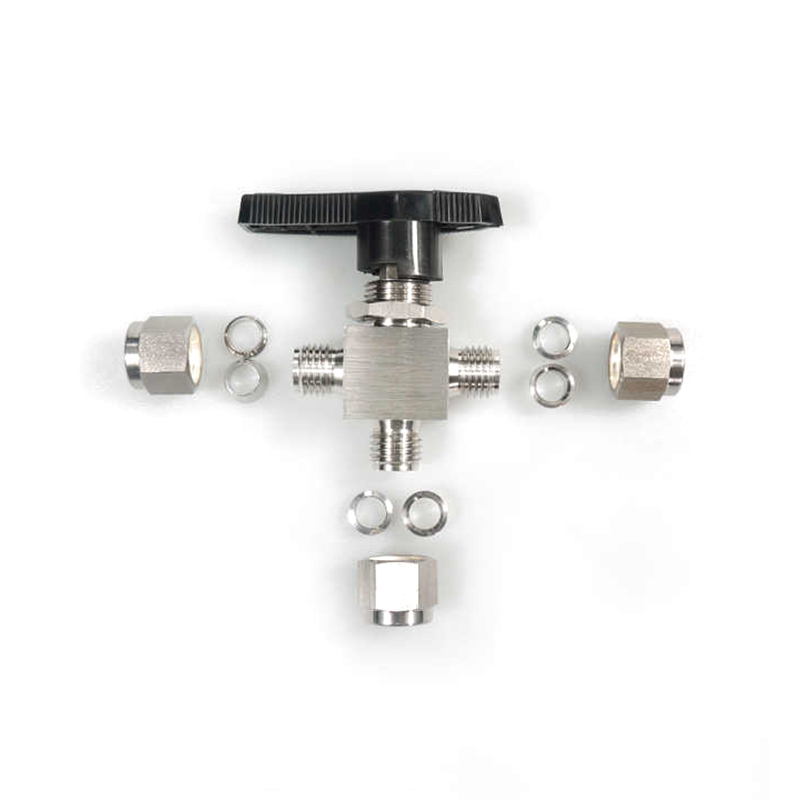

Stainless Steel Double Ferrule Three-way Ball Valve

Steel Duplex Ferrule Tres-Viae Ball Valvae in variis magnitudinibus praesto est ab 1/16 inch ad 3/4 inch (vel 3 mm ad 18 mm) ut necessitatibus occurrere magnitudinum fistularum diversarum. Amplitudo eius range applicationes e micro fluxu potestate ad magnum imperium fluens includit. Ad applicationes cum spatio exiguo vel exiguo fluxu exigentiis, magnitudo minoris est aptissima; dum ad systemata complexa alta fluxum et pressuram altam, valvae maior magnitudo efficere potest ne fluxus impediatur et operatio efficiens systematis praestatur. Valvae integrae corpus assumit et globum spiculum integratum consilium ad vitandum lacus vel difficultates defectus, quae ob multi-componentes nexus in traditionalibus consiliis valvae valvae evenire possunt. Designatio integralis valvae corporis et globulus scapus altiorem vim ac vetustatem valvae meliorem efficit, cum etiam defectiones potentiales reducendo per errores institutionis vel partes solutas reducantur..

Contactus Us

PREV: Trunnion Female Thread Ball Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

●Operans pressionem usque ad: 3000 psig (207 talea)
● temperies operans: -65 °F ad 300 °F (-54 °F ad 148°F)
●Size from 1/16in. ad 3/4in. vel 3mm ad 18mm
Valvae genera recta per tres modo et rectus-angulus
-Una pars valvae corporis et una pars pila hastile
Zonae mortuae nullae, ut area inter pilam et thalamum valvae
Top ostium consilio online inspici et reparari potest postquam ratio removetur

Parameter

Praecipua Ordinatio Numerus	Connection Typus et Size	Orificium in. (mm)	Cv		Dimensio, m. (mm)
			Rectus	Angulus	A	C	D	E	F	H
-OIB-MT3-2	3mm Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.34 (8.6)	0.97 (24.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-MT3-2-3W
-OIB-MT6-5	6mm Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.44 (11.2)	1.29 (32.8)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-MT6-5-3W
-OIB-MT8-5	8mm Tube	0.19 (4.8)	1.40	0.90	2.46 (62.5)	0.44 (11.2)	1.29 (32.8)	1.64 (41.7)	1.64 (41.7)	0.78 (19.8)
-OIB-MT8-5-3W
-OIB-MT10-7	10mm Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	1.43 (36.3)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-MT10-7-3W
-OIB-MT12-10	12mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT12-10-3W
-OIB-MT14-10	14mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 38.1)
-OIB-MT14-10-3W
-OIB-MT18-10	18mm Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT18-10-3W

-OIB-FT2-2-A	1/8"Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.34 (8.6)	0.97 (24.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-FT22-3W
-OIB-FT4-5-A	1/4"Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.44 (11.2)	1.29 (32.8)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-FT4-5-3W
-OIB-FT6-7-A	3/8"Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	1.43 (36.3)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-FT6-7-3W
-OIB-FT8-10-A	1/2"Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT8-10-3W
-OIB-FT12-10-A	3/4 "Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT12-10-3W
