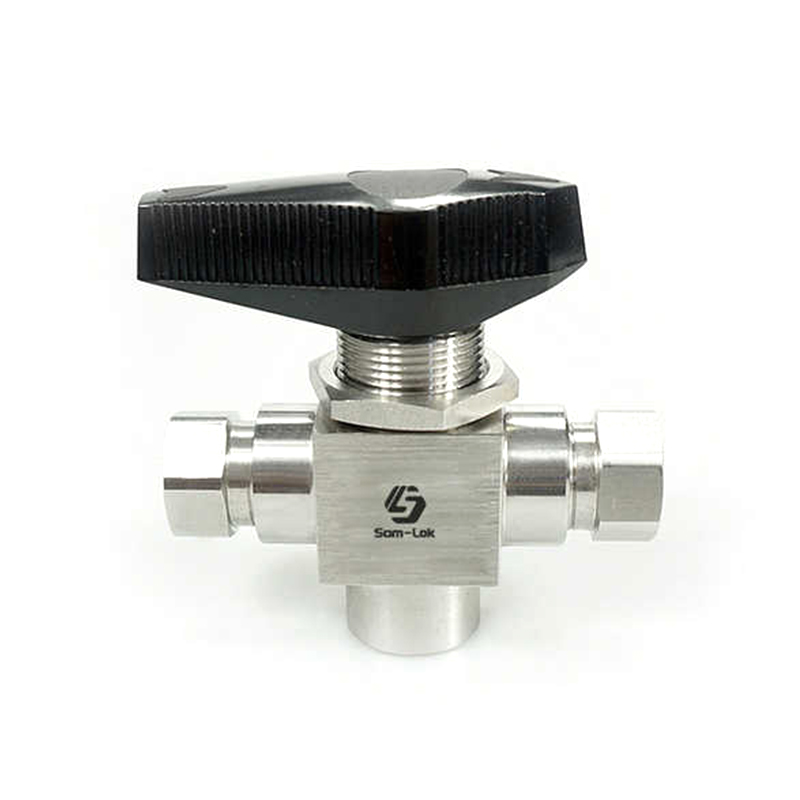

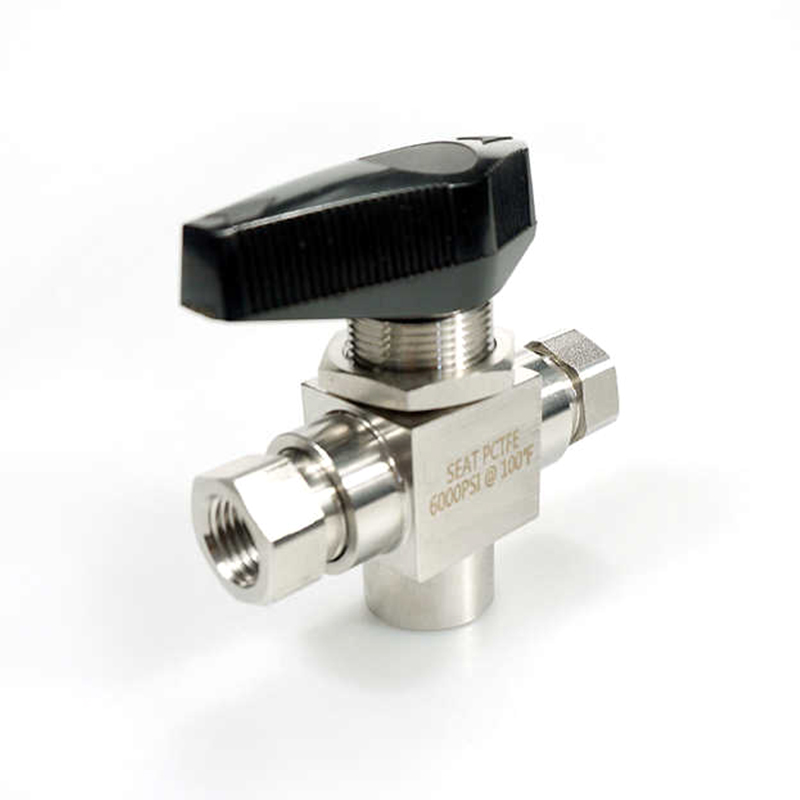

Trunnion Female Thread Ball Valve

Trunnion Female Thread Ball Valvae Immaculatam Steel Hydraulicam designatus est ut pressuras operating sustineat usque ad 10,000 psig (413 bar). Paucis valvis est in foro qui tantas pressuras sustinere potest. Maxime convenit ad productionem olei et gasi, translationem pipeline et systemata hydraulica alta. In his applicationibus, valvulae opus est ut pergas sub alta pressione in ambitibus fideliter operari. Globus valvae technologiae technologiae et praecisio machinis technologiae signandis provectis utitur. Ver-onusta sedes anuli huius valvae pilae consilium efficaciter compensare potest pro usu longo-terminus causato. Subinde sedes pilae valvae obsignatio uti potest propter continuam pressionem et altam caliditatem operationis, ita effectum signandi afficiens. Hoc consilium efficit ut pila valvae constantem pressionem tenere possint etiam si sedes anulus teritur.

Contactus Us

PREV: Steel Forged Trunnion Ball Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

●Operating pressionem usque ad: 10,000 psig (413 talea)
● caliditas operans: -65 ad 450 °F (-54 ad 232°C)
Ver-onusto sedem compenset conterentes
High pressura et humilis pressura sunt bona cione perficientur
Imo oneratione caulis prohibet derivantur
Humilis torques operating, donec servitium vitae
Gravis-officium manubrium indicant fluxus directionem
●Manual, electrica vel pneumatica actus praesto sunt
Tee solum ostium solum

Parameter

Praecipua Ordinatio Numerus	Connection Typus et Magnitudo	Orificium in. (mm)	Cv	Dimensio, m. (mm)
Praecipua Ordinatio Numerus	Connection Typus et Magnitudo	Orificium in. (mm)	Cv	A	B	C	D	E	F
-TB-FN2-5-3W	1/8 Male NPT	0.19 (4.8)	0.75	2.94 (74.7)	1.47 (37.3)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-FN4-5-3W	1/4 Femina NPT	0.19 (4.8)	0.75	2.94 (74.7)	1.47 (37.3)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-FN6-7-3W	3/8 Male NPT	0.19 (4.8)	0.75	3.93 (99.8)	1.97 (49.9)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-FN8-9-3W	1/2 Femina NPT	0.19 (4.8)	0.75	4.25 (108)	2.13 (54.0)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)

Basic Ordering Numerus	Connection Type et Size			Orificium in. (mm)	Cv	Dimensio, m. (mm)
Basic Ordering Numerus	Connection Type et Size			Orificium in. (mm)	Cv	A	B	C	D	E	F
-TBH-FN2-5-3W	1/8	Feminae	NPT	0.19 (4.8)	0.75	2.94 (74.7)	1.47 (37.3)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TBH-FN4-5-3W	1/4	Feminae	NPT	0.19 (4.8)	0.75	2.94 (74.7)	1.47 (37.3)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TBH-FN8-9-3W	1/2	Feminae	NPT	0.19 (4.8)	0.75	4.2 5 (108)	2.13 (54.0)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
