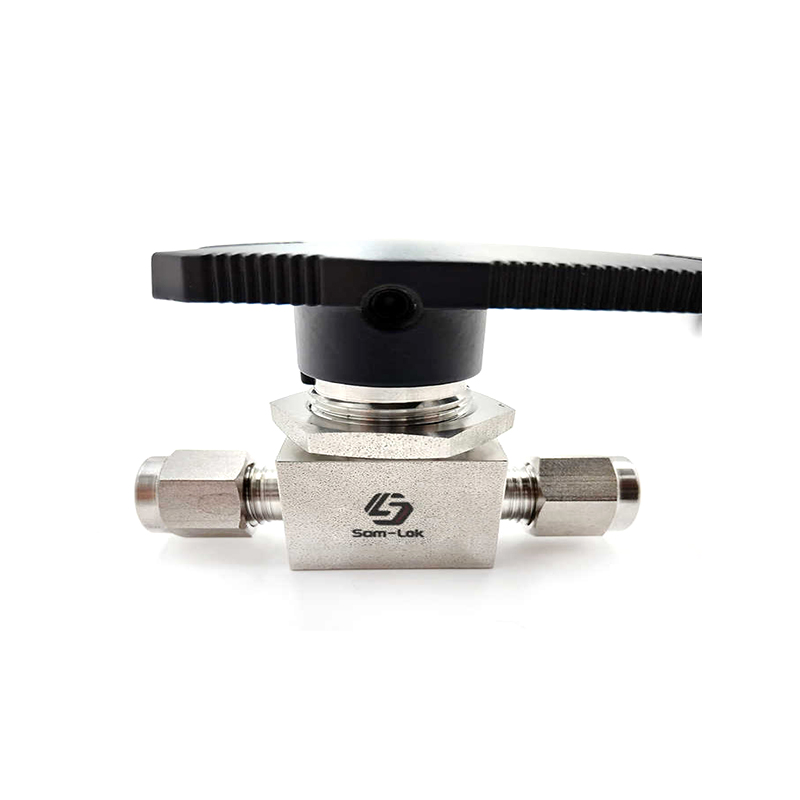

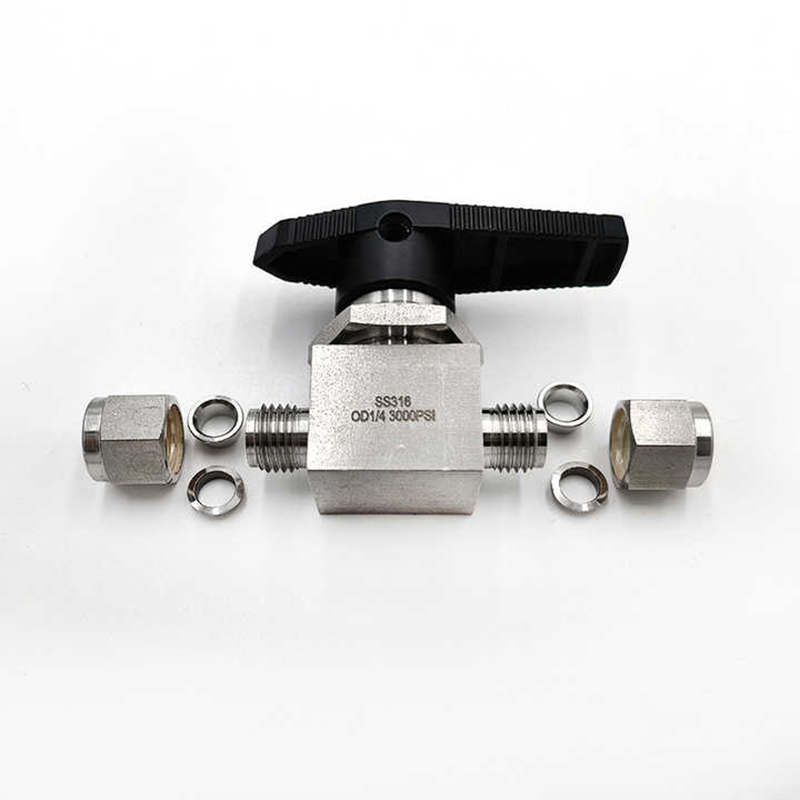

Duplex Ferrule Ball Valve

Maximam pressionem laborat Ferrule Duplex Ferrule Ball Valvae ad 3000 psig (207 bar), ut id stabiliter operari possit in systematis fluidi summus pressura. Cum limite pressionis usque ad 3000 psig, potest adhuc optimam obsignationem observantiam servare et accurationem moderari sub condicionibus ubi magnae fluxiones et pressurae altae requiruntur. Temperatus range operativa valvae est ab -65 °F (-54 °C) ad CCC °F (148 °C), ut eam obire variis ambitibus temperaturae extremae, sive opus sit materias congelatas sub ima temperaturis conditionibus versari, sive calidas humores in ambitibus calidis tractare, praestantem observantiam tueri potest. Valvula in variis magnitudinum amplitudinibus ab 1/16 pollicis usque ad 3/4 inch(3 mm ad 18 mm) praesto est ut ad institutionem exigentiis diversarum organorum magnitudinum occurrat. Ordinatio fluit quam parva sicut gradus micron et gas vel liquor imperium in tibiis crassis diametri praecise componi possunt.

Contactus Us

PREV: Stainless Steel Ttwo-Picies Double Ferrule Hex Ball Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

●Operans pressionem usque ad: 3000 psig (207 talea)
● temperies operans: -65 °F ad 300 °F (-54 °F ad 148°F)
●Size from 1/16in. ad 3/4in. vel 3mm ad 18mm
Valvae genera recta per tres modo et rectus-angulus
-Una pars valvae corporis et una pars pila hastile
Zonae mortuae nullae, ut area inter pilam et thalamum valvae
Top ostium consilio online inspici et reparari potest postquam ratio removetur

Parameter

-OIB-FT2-2	1/8"Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.28 (7.1)	0.34 (8.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-FT4-5	1/4"Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.38 (9.7)	0.44 (11.2)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-FT6-7	3/8"Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	0.56 (14.2)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-FT8-10	1/2"Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	0.69 (17.5)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT12-10	3/4"Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	0.69 (17.5)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)

-OIB-MT3-2	3mm Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.28 (7.1)	0.34 (8.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-MT6-5	6mm Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.38 (9.7)	0.44 (11.2)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-MT8-5	8mm Tube	0.19 (4.8)	1.40	0.90	2.46 (62.5)	0.38 (9.7)	0.44 (11.2)	1.64 (41.7)	1.64 (41.7)	0.78 (19.8)
-OIB-MT10-7	10mm Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	0.56 (14.2)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-MT12-10	12mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	0.69 (17.5)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT14-10	14mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	0.69 (17.5)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT18-10	18mm Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	0.69 (17.5)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
