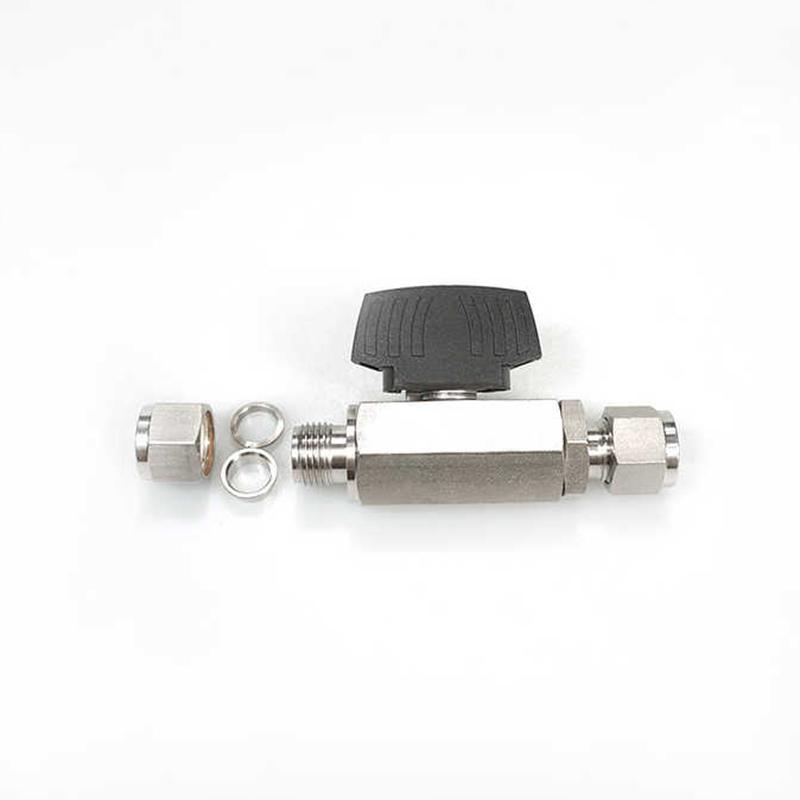

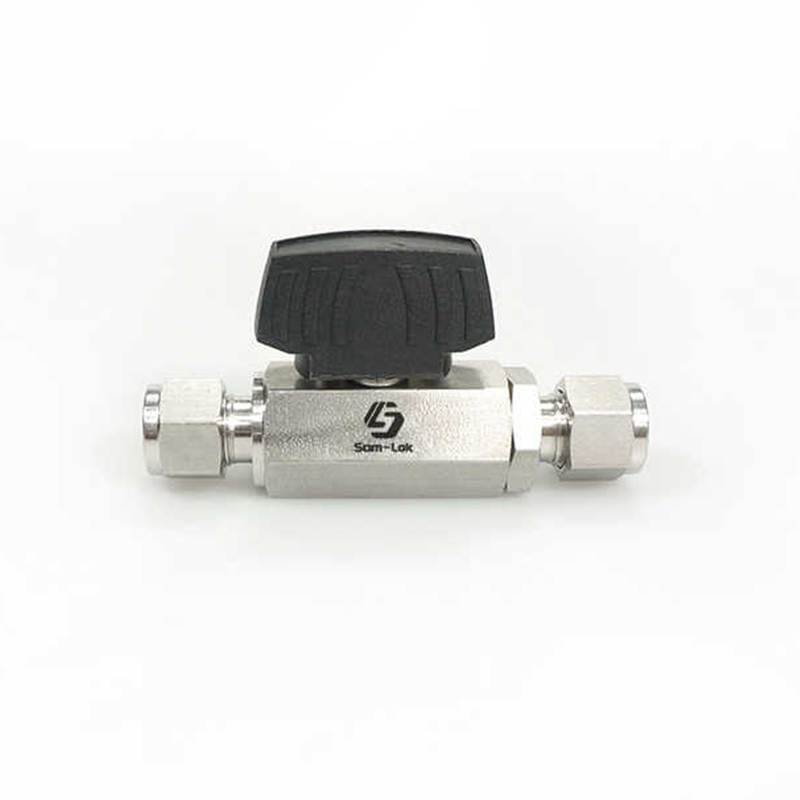

Stainless Steel Ttwo-Picies Double Ferrule Hex Ball Valve

Steel Duplex Ferrule Hex Ball Valve Duplex Ferrule Duplex consilium capit et duplici nexu systematis fibulae instructa est ut obsignationem altam, resistentiam corrosionis et diuturnum valvae firmitatem. Corpus valvae integralis et scapus pilae integralis structuram adoptat. Hoc consilium non solum auget vires mechanicas valvae et periculum lacus minuit, sed etiam stabilitatem et signationem valvae diuturnam efficit. Scapula pila integrata consilium evitat problema lacus lacus, qui in valvis traditionalibus ob multiplices nexus fieri potest, valvae maxime certae in longum tempus summus pressurae et ambitus mordax valde. Pila valvae porttitor zonae mortuae consilium habet, praesertim in area inter pilam et cavitatis valvae, nulla zona mortua est. Hoc consilium umorem vel gasum impedire potest ne in cavitate valvae retineatur, inde periculum contaminationis, depositionis vel corrosionis minuens, ac puritatem fluidi et operationem efficientis systematis procurans..

Contactus Us

PREV: Steel Duplex Ferrule 90 Degree Angle Ball Valve DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

●Operans pressionem usque ad: 3000 psig (207 talea)
● temperies operans: -65 °F ad 300 °F (-54 °F ad 148°F)
●Size from 1/16in. ad 3/4in. vel 3mm ad 18mm
Valvae genera recta per tres modo et rectus-angulus
-Una pars valvae corporis et una pars pila hastile
Zonae mortuae nullae, ut area inter pilam et thalamum valvae
Top ostium consilio online inspici et reparari potest postquam ratio removetur

Parameter

Praecipua Ordinatio Numerus	Connexio Typus et Amplitudo		Orificium in. (mm)	Cv	Dimensio, m. (mm)
Praecipua Ordinatio Numerus	Connexio Typus et Amplitudo		Orificium in. (mm)	Cv	A	B	C	D	W
-HBB-MT6-5	6mm	Tubus	0.19 (4.8)	1.25	2.57 (65.2)	1.50 (38.1)	2.36 (60.0)	1.18 (30.0)	0.75 (19.1)
-HBB-MT8-5	8mm	Tubus	0.19 (4.8)	1.25	2.63 (66.8)	1.53 (38.8)	2.36 (60.0)	1.18 (30.0)	0.75 (19.1)
-HBB-MT10-7	10mm	Tubus	0.28 (7.1)	2.50	2.87 (72.9)	1.68 (42.7)	2.36 (60.0)	1.18 (30.0)	0.87 (22.2)
-HBB-MT12-9	12mm	Tubus	0.35 (8.9)	6.25	3.15 (80.0)	1.83 (46.5)	3.15 (80.0)	1.54 (39.0)	0.87 (22.2)
-HBB-MT14-9	14mm	Tubus	0.35 (8.9)	6.25	3.24 (82.2)	1.87 (47.5)	3.15 (80.0)	1.54 (39.0)	0.87 (22.2)
-HBB-MT16-12	16mm	Tubus	0.47 (12.0)	12.65	3.50 (88.9)	2.00 (50.8)	3.94 (100.0)	2.03 (50.7)	1.26 (32.0)
-HBB-MT18-12	18mm	Tubus	0.47 (12.0)	12.65	3.50 (88.9)	2.00 (50.8)	3.94 (100.0)	2.03 (50.7)	1.26 (32.0)
-HBB-MT22-16	22mm	Tubus	0.63 (16.0)	17.35	3.96 (100.6)	2.24 (57.1)	3.94 (100.0)	2.15 (54.8)	1.50 (38.1)
-HBB-MT25-16	25mm	Tubus	0.63 (16.0)	17.35	4.31 (109.5)	2.42 (61.5)	3.94 (100.0)	2.15 (54.8)	1.50 (38.1)
