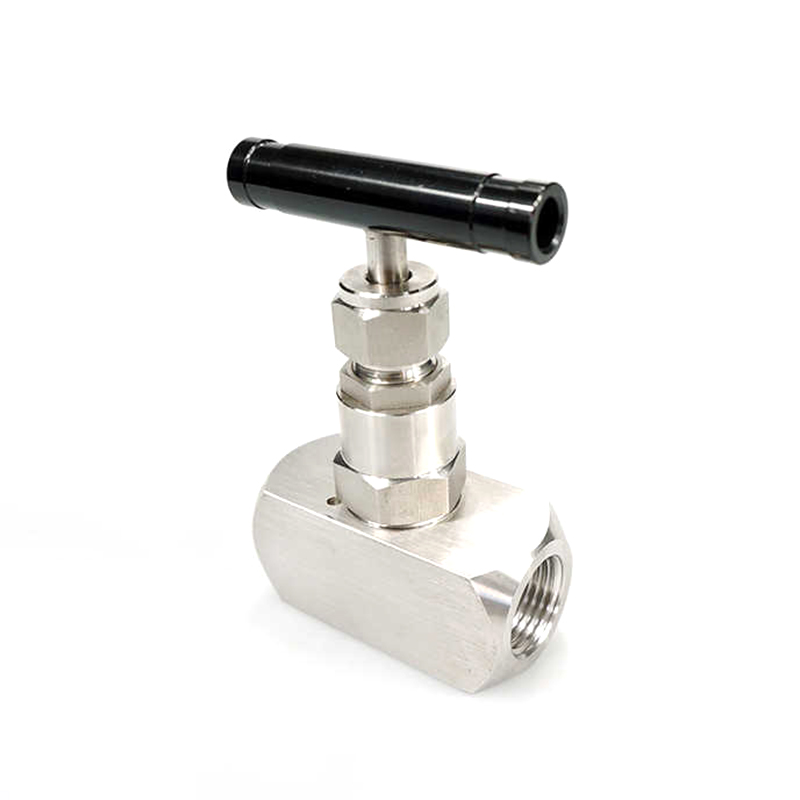

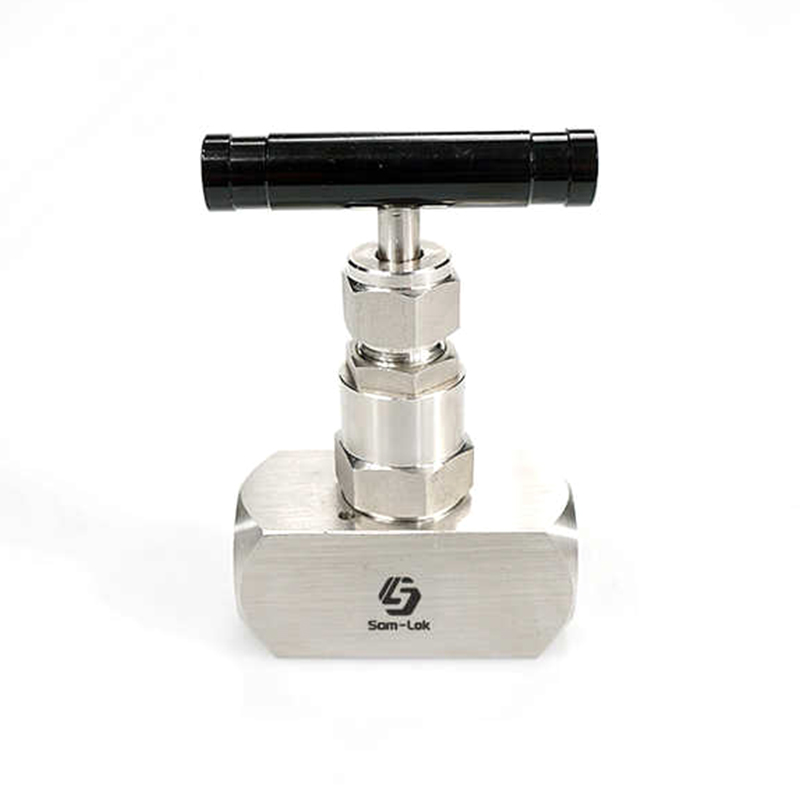

Aliquam Utilitas Service acus Valve

Stainless Steel General Utilitas Service acus Valvae valvae summus perficientur est ad ordinationem et imperium variarum instrumentorum fluentium destinatum. Late adhiberi potest in variis humoribus, incluso aqua, oleo, gasi, acidicis vel alkalinis solutionibus, etc. Eius materialis et structuralis consilium praestantissimum efficit obsignationem et corrosionem resistentiam in variis instrumentis profluentibus. Valvae corpus factum est ferro immaculato, quod alte corrosioni resistentiae et resistentiae oxidationis habet. Qualitas summus chalybe incorrupta materia non solum efficit vitam longam servitutis valvae in asperis ambitibus, sed etiam degradationem valvae effectionis corrosionis causatam efficaciter vitat. Conus interior huius valvae acus est specularis politus ut lenis et stabilis fluxus medii curet. Curatio specularis expolitio non solum subtilitatem fluxus temperantiae emendat, sed etiam attritionem fluidi amissionem minuit et vitam servitii valvae extendit..

Contactus Us

PREV: Stainless Steel Male Thread acus Valvae DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Pressura: Pressura

Potentia: Manuale

Material: Steel

Temperature of Media: Normal Temperature

Media: aqua, oleum, gas, acidum vel basi

Port Size: 1/4'' - 11/2''

Originis locus: Jiangsu, Sina (continens)

Exemplar Number: 6000PSI Male NPT acus Valvae

Applicationem: General

size: 1/4''- 11/2'' 6~ 38mm

opus pressura: 10000psi vel ut tuam

Temperature laborans: 0°F ad 450°F (-18℃ ad 232℃)

nexum: femina, copulatio vel iuncta

technicae: Steel 10000PSI Male Male acus Valvae

Curatio tubus: plene annealed

Nux Curatio: argentum plantatum

Interiorem Cone: Speculum tincidunt processus

Parameter

Praecipua Ordinatio Numerus	Connexio typus et Size		Orificium in (mm)	Cv	Dimensionin. (mm)
Praecipua Ordinatio Numerus	Inlet	Outlet	Orificium in (mm)	Cv	L1	L2	C	D	E	F	H
-FNH-FN2-3	1/8 Male NPT	1/8 Male NPT	0.12 (3.0)	0.20	1.00 (25.4)	1.008 (25.4)	0.53 (13.5)	2.17 (55.0)	0.71 (18.0)	0.77 (19.6)	285 (72.5)
-FNH-FN4-4	1/4 Femina NPT	1/4 Femina NPT	0.16 (4.0)	0.35	1.06 (27.0)	1.06 (27.0)	0.53 (13.5)	2.17 (55.0)	0.71 (18.0)	0.77 (19.6)	2.85 (72.5)
-FNH-FN6-5	3/8 Male NPT	3/8 Male NPT	0.20 (5.1)	0.56	1.14 (29.0)	1.14 (29.0)	0.62 (15.8)	2.50 (63.5)	0.87 (22.0)	0.96 (24.4)	3.38 (85.8)
-FNH-FN8-6	1/2 Femina NPT	1/2 Femina NPT	0.25 (6.4)	0.70	1.26 (32.0)	1.26 (32.0)	0.62 (158)	2.50 (63.5)	0.87 (22.0)	0.96 (24.4)	3.38 (85.8)
-FNH-FN8-7	1/2 Femina NPT	1/2 Femina NPT	0.29 (7.5)	0.95	1.26 (32.0)	1.26 (32.0)	0.62 (15.8)	2.50 (63.5)	0.87 (22.0)	0.96 (24.4)	3.38 (85.8)
-FNH-FN12-9	3/4 Femina NPT	3/4 Femina NPT	0.36 (9.1)	1.60	1.58 (40.0)	1.58 (40.0)	0.80 (20.2)	3.50 (88.9)	1.10 (28.3)	1.08 (27.5)	3.78 (96.0)
-FNH-FN16-12	1 Male NPT	1 Male NPT	0.48 (12.2)	2.65	1.97 (50.0)	1.97 (50.0)	1.30 (33.0)	5.00 (127)	1.61 (41.0)	1.45 (36.8)	6.50 (165)

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Aliquam Utilitas Service acus Valve Manufacturers and Aliquam Utilitas Service acus Valve Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.
