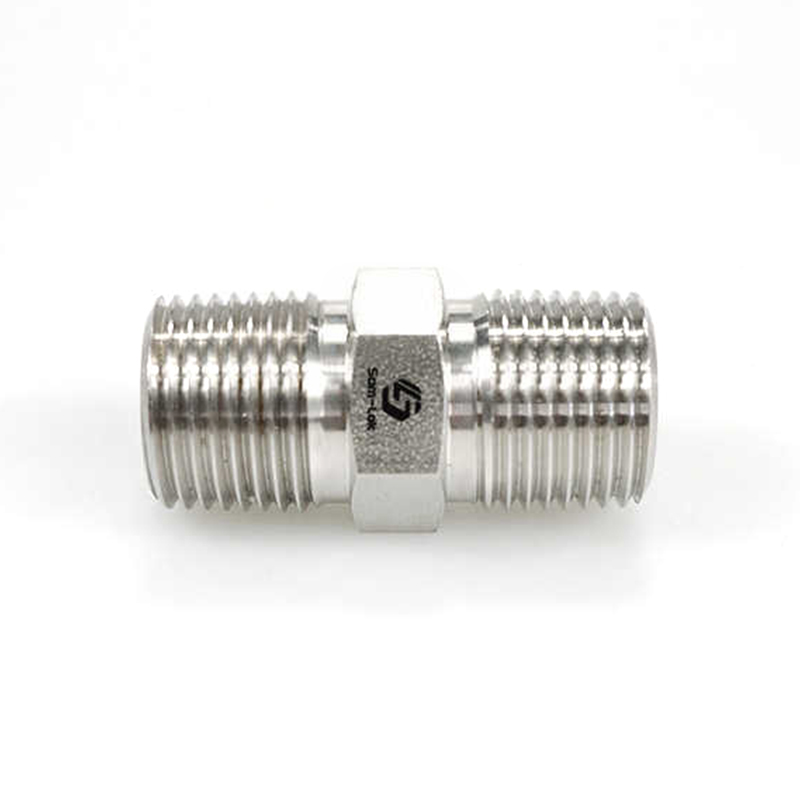

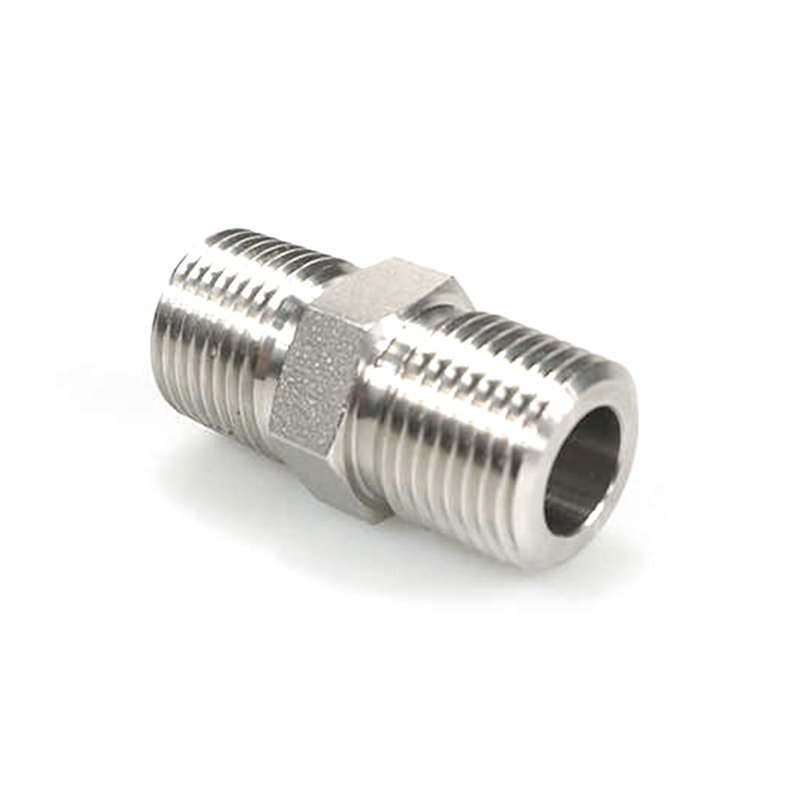

Steel Hex Nipple

Steel Hex Nipple immaculatus una est e communi usu partium connexionis in systematibus fistulae industrialis connexionis. Maxime ad duo fistulas vel tibias cum aliis accessoriis connectere solebat. Iunctura fabricatur per processum cudendo, quod productum facit maiorem vim et duritiem habent. In processu cudendo, structura frumenti metalli optimized est, quae altiore proprietates mechanicas materiae, praesertim distrahentes vires et resistentiam adhibet, melioratur. Comparati cum iactu, producti ficti melius sub onere et pressione condiciones praestant. Haec iunctura apta est systema tradendi variorum fluidorum industrialium, inclusorum olei, aquae, gasi aliorumque liquorum industrialium. Excelsa vis eius et corrosio resistentiae, eam diu in variis ambitibus stabiliter operari sinunt.

Contactus Us

PREV: Steel Male germen Tee Pipe Fitting DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Consueverunt: Available

Medium: oleum, aqua, etc.

Size: 1/8-1 1/2inh

Originis locus: Jiangsu, Sina (continens)

Connection: masculus-ad-masculus staminea

Caput Code: Circum

Applicationem: General

Logo: Any logo is available

Parameter

Masculum NPT Threads
P-NPT Magnitudo	Px-NPT Magnitudo	Praecipua Ordinatio Numerus	Dimensio in(mm)					Operandi Pressura psig (bar)
P-NPT Magnitudo	Px-NPT Magnitudo	Praecipua Ordinatio Numerus	L	F(Hex)	B	Bx	E	316SS, Steel	Brass
1/16	1/16	-THN-MN1	1.01(25.6)	0.31(7.9)	0.38(9.7	0.38(9.7)	0.12(3.0)	11000(757)	5500(378)
1/8	1/16	-THN-MN2-MN1	1.01(25.6)	0.44(11.1)	0.38(9.7	0.38 (9.7)	0.12(3.0)	11000(757)	5500(378)
1/8	1/8	-THN-MN2	1.01(25.6)	0.44(11.1)	0.38(9.7)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344)
1/4	1/16	-THN-MN4-MN1	1.22(31.0)	0.56(14.3)	0.56(14.2)	0.38 (9.7)	0.12(3.0)	11000(757)	5500(378)
1/4	1/8	-THN-MN4-MN2	1.22(31.0)	0.56(14.3)	0.56(14.2)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344
1/4	1/4	-THN-MN4	1.40(35.6)	0.56(14.3)	0.56(14.2)	0.56(14.2	0.28(7.1)	8000(551)	4000(275)
3/8	1/16	-THN-MN6-MN1	1.25(31.8)	0.69(17.5)	0.56(14.2)	0.38(9.7)	0.12(3.0)	11000(757)	5500(378)
3/8	1/8	-THN-MN6-MN2	1.25(31.8)	0.69(17.5)	0.56(14.2)	0.38(9.7)	0.19(4.8)	10000(689	5000(344
3/8	1/4	-THN-MN6-MN4	1.43(36.3)	0.69(17.5)	0.56(14.2)	0.56(14.2	0.28(7.1)	8000(551)	4000(275)
3/8	3/8	-THN-MN6	1.43(36.3)	0.69(17.5)	0.56(14.2)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
1/2	1/8	-THN-MNB-MN2	1.47(37.3)	0.87(22.2)	0.75(19.1)	0.38 (9.7)	0.19(4.8)	7700 (530)	3800(261)
1/2	1/4	-THN-MNB-MN4	1.65(41.9)	0.87(22.2)	0.75(19.1)	0.56(14.2)	0.28(7.1)	8000(551)	4000(275)
1/2	3/8	-THN-MNB-MN6	1.65(41.9)	0.87(22.2)	0.75(19.1)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
1/2	1/2	-THN-MN8	1.84(46.7)	0.87(22.2)	0.75(19.1)	0.75(19.1)	0.47 (11.9)	7700 (530)	3800(261)
3/4	1/8	-THN-MN12-MN2	1.59(40.4)	1.06(27.0)	0.75(19.1)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344)
3/4	1/4	-THN-MN12-MN4	1.65(41.9)	1.06(27.0)	0.75(19.1)	0.56(14.2)	0.28(7.1)	8000(551)	4000(275)
3/4	3/8	-THN-MN12-MN6	1.78(45.2)	1.06(27.0)	0.75(19.1)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
3/4	1/2	-THN-MN12-MN8	1.84(46.7)	1.06(27.0)	0.75(19.1)	0.75(19.1)	0.47 (11.9)	7700 (530)	3800(261)
3/4	3/4	-THN-MN12	1.84(46.7)	1.06(27.0)	0.75(19.1)	0.75(19.1)	0.62(15.7)	7300(502)	3600(248)
1	1/8	-THN-MN16-MN2	1.78(45.2)	1.37(34.9)	0.94(23.9)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344
1	1/4	-THN-MN16-MN4	1.94(49.3)	1.37(34.9)	0.94(23.9)	0.56(14.2	0.28(7.1)	5300(365)	2600 (179)
1	3/8	-THN-MN16-MN6	1.97(50.0)	1.37(34.9)	0.94(23.9)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
1	1/2	-THN-MN16-MN8	2.13(54.1)	1.37(34.9)	0.94(23.9)	0.75(19.1)	0.47 (11.9)	7700 (530)	3800(261)
1	3/4	-THN-MN16-MN12	2.13(54.1)	1.37(34.9)	0.94(23.9)	0.75(19.1)	0.62(15.7)	7300(502)	3600(248)
1	1	-THN-MN16	2.32(58.9)	1.37(34.9)	0.94(23.9)	0.94(23.9)	0.88(22.4)	5300(365)	2600 (179)
11/4	1	-THN-MN20-MN16	2.45(62.2)	1.75(44.5)	0.94(23.9)	0.94(23.9)	0.88(22.4)	5300(365)	2600 (179)
11/4	11/4	-THN-MN20	2.48(62.9)	1.75(44.5)	0.94(23.9)	0.94(23.9)	1.13(28.6)	6000 (410)	3000(200)
11/2	11/2	-THN-MN24	2.61(66.3)	2.00(50.8)	1.03(26.2)	1.03(26.2)	1.34(34.0)	5000(344)	2500 (172)
2	2	-THN-MN32	3.06(77.7)	2.75(69.9)	1.03(26.2)	1.03(26.2	1.77(45.0)	3900(268)	1900 (130)
