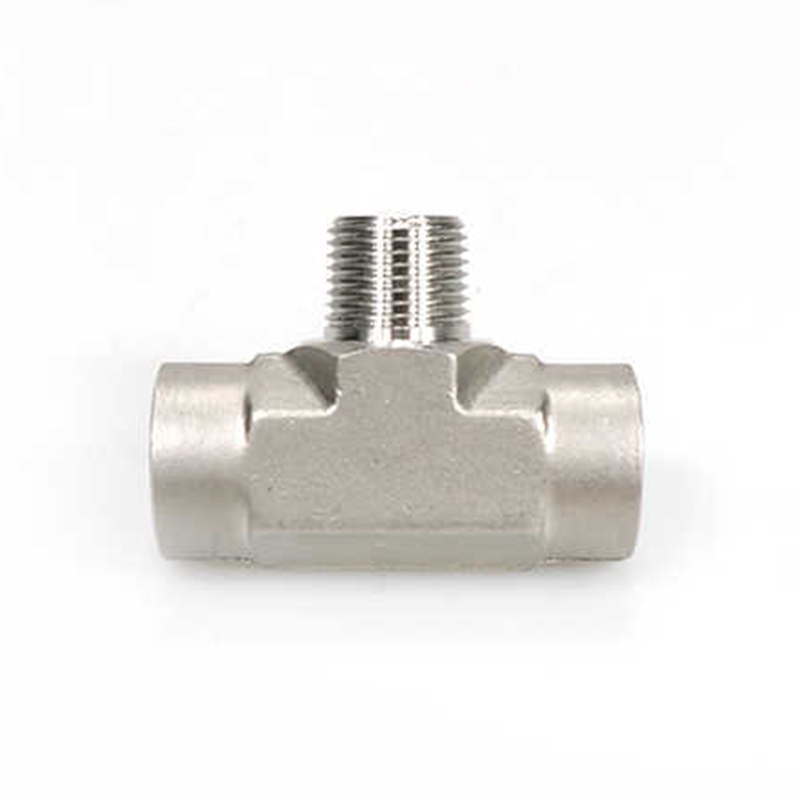

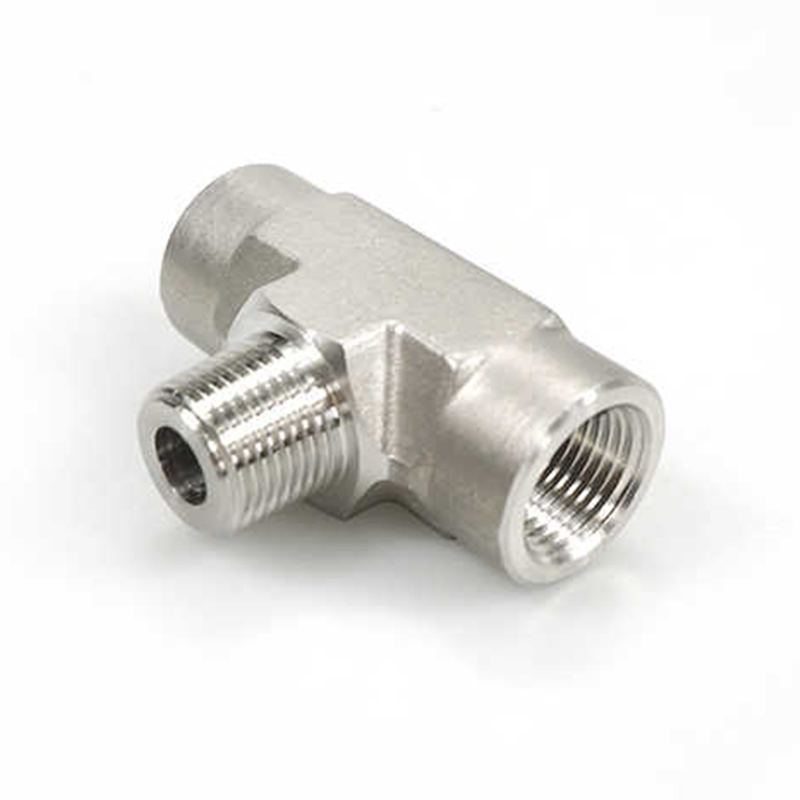

Steel Male germen Tee Pipe Fitting

Stainless Steel Male germen Tee Pipe Fitting fabricatur cum provectae technologiae cudendo. Processus ficticus efficit ut organorum superficies interiores et exteriores fistulae leves sint et a defectibus immunes, altiore vi et pressione resistentia augendo. Lorem ipsum sit amet ut eget. Utrum magnitudo, filum species, an figura, logo et alia singula, aptari possunt secundum specifica requisita mos. Customers consilium suum requisita providere possunt ut opus productum melius adaptetur ad usus personales necessarios. Haec fistula apta pluribus industriis apta est ut petroleum, gas naturale, industria chemica, HVAC, et electricitati. Diu stabiliter adhiberi potest sub caliditas, alta pressura et corrosivum environment. Aptissimum est ad varia media fluida tradenda, sicut oleum et aquam. Plerumque in systematibus hydraulicis, systematibus aëris compressionis, aquarum instrumentorum pipelinorum copia adhibita est, etc.

Contactus Us

PREV: Steel Female Tee Pipe Fitting DEINDE: Nullus proximus articulum

Describe
Parameter

Describe

Material: Steel

Technicae: Forged

Consueverunt: Available

Medium: oleum, aqua, etc.

Size: 1/8-1 1/2inh

Originis locus: Jiangsu, Sina (continens)

Connection: masculus-ad-femina staminea

Caput Code: Circum

Applicationem: General

Logo: Any logo is available

Parameter

NPT Threads
P-NPT Magnitudo	Praecipua Ordinatio Numerus	Dimensio in(mm)						Operandi Pressura psig(bar)
P-NPT Magnitudo	Praecipua Ordinatio Numerus	L	F(Flat)	B	E	Lx	Bx	316SS, Steel	Brass
1/16	VUL-FN1-MN1	0.86(21.8)	0.44(11.1)	0.12(3.0)	0.38(97)	0.86(21.8)	0.39(9.9)	9200(633)	4600 (316)
1/8	-TMB-FN2-MN2	1.04(26.4)	0.50(12.7)	0.19(4.8)	0.41(10.4)	0.87(22.1)	0.38(9.7)	6200(427)	3100(213)
1/4	-TMB-FN4-MN4	1.17(29.7)	0.69(17.5)	0.28(7.1)	0.59 (15.0)	1.17(29.7)	0.56(14.2)	7200(496)	3600(248)
3/8	-TMB-FN6-MN6	1.42(36.1)	0.81(20.6)	0.38(9.6)	0.59 (15.0)	1.26(32.0)	0.56(14.2)	5600(385)	2800 (192).
1/2	-TMB-FN8-MN8	1.56(39.6)	1.00(25.4)	0.47 (11.9)	0.78(19.8)	1.56(39.6)	0.75(19.1)	5600(385)	2800 (192).
3/4	-TMB-FN12-MN12	1.92(48.8)	1.25(31.8)	0.62(15.7)	0.81(20.6)	1.67(42.4)	0.75(19.1)	5100(351)	2500 (172)
1	-TMB-FN16-MN16	1.91(48.5)	1.69(42.9)	0.88(22.4)	1.00(25.4)	1.94(49.3)	0.94(23.9)	5300(365)	2600 (179)
ISO Tapered Threads
P-RT Size	Praecipua Ordinatio Numerus	Dimensio in(mm)						Operandi Pressura psig(bar)
P-RT Size	Praecipua Ordinatio Numerus	L	F(Flat)	B	E	Lx	Bx	316SS, Steel	Brass
1/16	VUL-FR1-MR1	0.86(21.8)	0.44(11.1)	0.12(3.0)	0.38(97)	0.86(21.8)	0.39(9.9)	9200(633)	4600 (316)
1/8	-TMB-FR2-MR2	1.04(26.4)	0.50(12.7)	0.19(4.8)	0.41(10.4)	0.87(22.1)	038(9.7)	6200(427)	3100(213)
1/4	VUL-FR4-MR4	1.17(29.7)	0.69(17.5)	0.28(7.1)	0.59 (15.0)	1.17(29.7)	0.56(14.2)	7200(496)	3600(248)
3/8	-TMB-FR6-MR6	1.42(36.1)	0.81(20.6)	0.38(9.6)	0.59 (15.0)	1.26(32.0)	0.56(14.2)	5600(385)	2800 (192).
1/2	-TMB-FR8-MR8	1.56(39.6)	1.00(25.4)	0.47 (11.9)	0.78(19.8)	1.56(39.6)	0.75(19.1)	5600(385)	2800 (192).
3/4	-TMB-FR12-MR12	1.92(48.8)	1.25(31.8)	0.62(15.7)	0.81(20.6)	1.67(42.4)	0.75(19.1)	5100(351)	2500 (172)
1	-TMB-FR16-MR16	1.91(48.5)	1.69(42.9)	0.88(22.4)	1.00(25.4)	1.94(49.3)	0.94(23.9)	5300(365)	2600 (179)
